Special Service Tool
The actual shape of the tools may differ from those illustrated here.

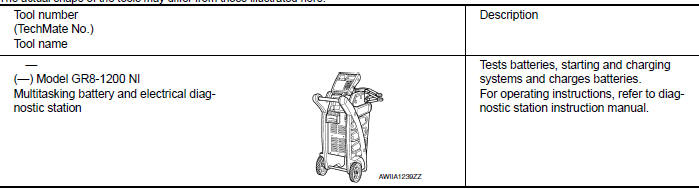

Commercial Service Tool

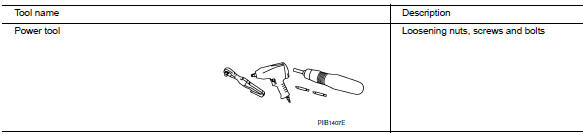

PrecautionCONSULT Data Link Connector (DLC) Circuit
Inspection procedure
If the CONSULT cannot diagnose the system properly, check the following
items.
Symptom
Check item
CONSULT cannot access any
system.
CONSULT DLC power supply circuit (Terminal 8 and 16) and ground
circuit (Terminal 4 and 5)
...
Basic inspection
Diagnosis and repair work flow
Work flow
Detailed flow
1.Obtain information about symptom
Interview the customer to obtain as much information as possible about the
conditions and environment under
which the malfunction occurs.
>> GO TO 2.
2.Check symptom
Check the symptom based ...
Removal and installation
Generator
Exploded view
Thermostat housing
Generator bolt (upper)
Generator bolt (lower)
Generator
B” terminal harness
“B” terminal nut
Generator harness connector
Front
Removal and installation
Note:
When removing components such as hoses,tubes\lines,etc,ca ...
