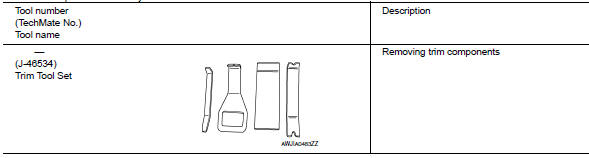

Special Service Tool
The actual shape of the tools may differ from those illustrated here.

Precaution for WorkM&A branch line circuit
Diagnosis procedure
1.Check connector
Turn the ignition switch off.
Disconnect the battery cable from the negative terminal.
Check the terminals and connectors of the combination meter for damage,
bend and loose connection
(unit side and connector side).
Is the inspection result nor ...
Dtc/circuit diagnosis
U1000 can comm circuit
DTC Logic
Dtc detection logic
Consult display
Dtc detection condition
Possible cause
Can comm circuit
[u1000]
Av control unit is not transmitting or receiving
can communication signal for 2 seconds or
more.
CAN communication system.
...
Precaution for Liquid Gasket
REMOVAL OF LIQUID GASKET
After removing nuts and bolts, separate the mating surface, using Tool
and remove old liquid gasket.
Tool number : KV10111100 (J-37228)
CAUTION:
Be careful not to damage the mating surfaces.
Tap (1) Tool to insert it, and then slide it (2) by tapping on t ...
