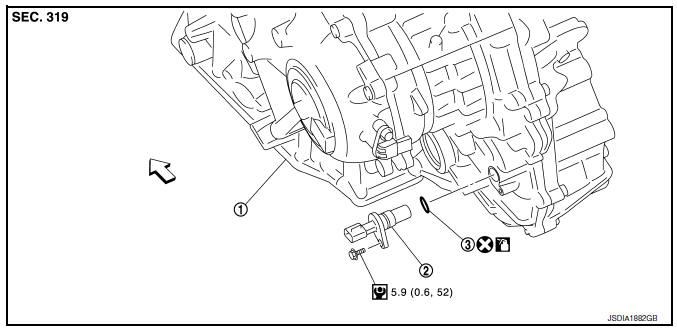

Exploded View

Transaxle assembly
Output speed sensor
O-ring

: Always replace after every : Vehicle front

: Always replace after every
disassembly.

: Genuine NISSAN CVT Fluid NS-3 : NВ·m (kg-m, in-lb)

Removal and Installation : Genuine NISSAN CVT Fluid NS-3

Removal and Installation

REMOVAL

Disconnect the output speed sensor harness connector.
Remove the output speed sensor.
Remove the O-ring from the output speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.
Apply Genuine NISSAN CVT Fluid NS-3 to the O-ring.

Inspection and Adjustment

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Check CVT fluid level. Refer to TM-251, "Adjustment".
