Nissan Sentra Service Manual: OIL PAN

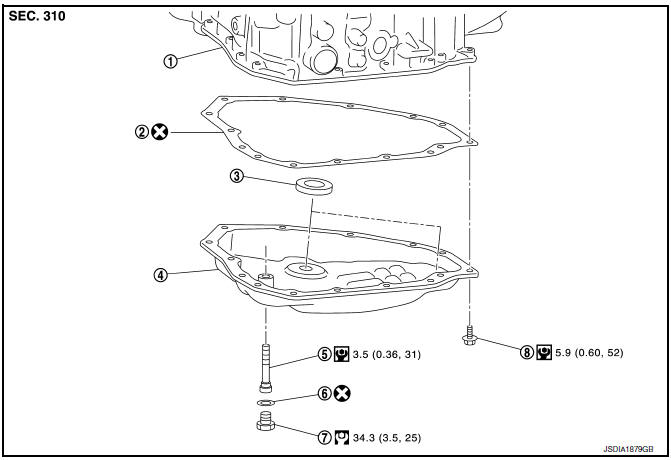

Exploded View

- Transaxle assembly
- Oil pan gasket
- Magnet
- Oil pan
- Overflow tube
- Drain plug gasket
- Drain plug
- Oil pan fitting bolt
: Always replace after every
disassembly.
: NВ·m (kg-m, ft-lb)
: NВ·m (kg-m, it-lb)
Removal and Installation
REMOVAL
- Remove the engine under cover. Refer to EXT-31, "ENGINE UNDER COVER :
Removal and Installation".
- Remove the drain plug and overflow tube, and then drain the CVT fluid.
CAUTION:
When draining CVT fluid use safety glasses.
- Remove the drain plug gasket from the drain plug.
- Remove the oil pan bolts (
), and then remove the oil pan and
oil pan gasket.
: Front
- Remove the magnets from the oil pan.

INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Do not reuse oil pan gasket and drain plug gasket.
- When installing the oil pan bolts, be sure to use new bolts.
- Completely remove all moisture, oil and old gasket, etc. from the
oil pan gasket surface of transaxle
case and oil pan.
- When installing the overflow tube, be sure to tighten to the
specified torque. If it is not tightened to
the specified torque, the tube may be damaged.

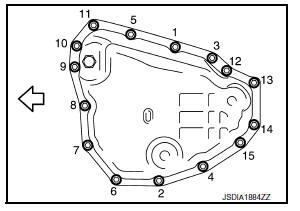

- When the oil pan is installed, tighten bolts in the order shown in the
figure after temporarily tightening the oil pan bolt.
: Front

Inspection
INSPECTION AFTER REMOVAL
Check oil pan for foreign material.
- If a large amount of worn material is found, clutch plate may be worn.
- If iron powder is found, bearings, gears, or clutch plates may be worn.
- If aluminum powder is found, bushing may be worn, or chips or burrs of
aluminum casting parts may enter.
Check points where wear is found in all cases.
INSPECTION AFTER INSTALLATION
Start the engine and check visually that there is no leakage of CVT fluid.
