Nissan Sentra Service Manual: Latch system for children

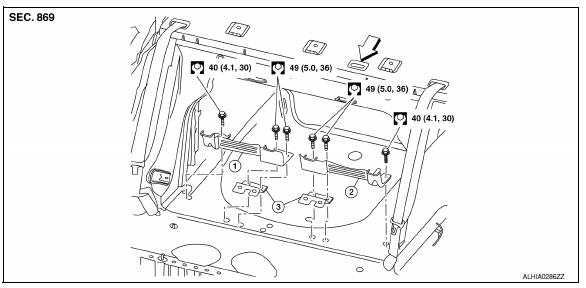

Exploded View
- LATCH bracket (RH)
- LATCH bracket (LH)
- Seat belt buckle anchor bracket
Front
Removal and Installation
REMOVAL
- Remove the rear seat cushion assembly. Refer to SE-23, "Removal and Installation - Seat Cushion Assembly"
- Remove the rear seatback assembly. Refer to SE-23, "Removal and Installation - 60:40 Split Seatback".
- Remove the LATCH bracket bolts and the LATCH bracket.
INSTALLATION
Installation is in the reverse order of removal.
- Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to SB-5, "Inspection".
- Tighten the LATCH bracket bolts to specification. Refer to SB-13, "Exploded View".
Rear seat belt
Exploded View - Seat Belt Retractor
Seat belt retractor (RH)
Seat belt retractor (center)
Seat belt retractor (LH)
Front
Removal and Installation - Seat Belt Retractor
REMOVAL
R ...
Top tether strap child restraint
Removal and Installation
The top tether strap child restraint system components (1) are part of
the vehicle structure and are not serviceable.
...
