Nissan Sentra Owners Manual: Keys

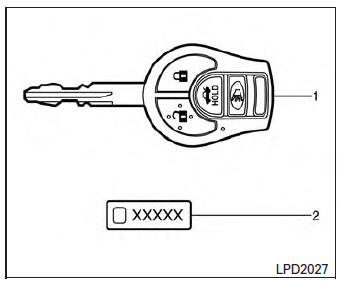

Remote keyless entry keyfob (if so equipped)
- Integrated door lock keyfob
- Key number plate
CAUTION
Do not leave the ignition key inside the vehicle when you leave the vehicle.
A key number plate is supplied with your keys.
Record the key number and keep it in a safe place (such as your wallet), not in the vehicle. If you lose your keys, see a NISSAN dealer for duplicates by using the key number. NISSAN does not record key numbers so it is very important to keep track of your key number plate.
A key number is only necessary when you have lost all keys and do not have one to duplicate from. If you still have a key, your NISSAN dealer can duplicate it.

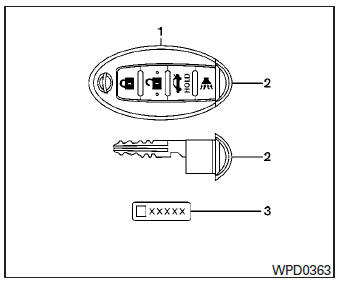

- Two Intelligent Keys
- Mechanical keys (inside Intelligent Keys)
- Key number plate
NISSAN Intelligent Key® (if so equipped)
Your vehicle can only be driven with the Intelligent
Keys which are registered to your vehicle’s Intelligent
Key components and NISSAN Vehicle Immobilizer
System components.
Never leave these ke ...
