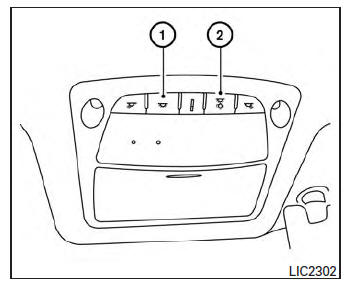

The lights will go off when the ignition switch is placed in the ON position, or the driver’s door is closed and locked. The lights will also go off after a period of time when the doors are open.
NOTE:
The step lights illuminate when the driver and passenger doors are opened regardless of the interior light switch position.
These lights will turn off automatically after a period of time while doors are open to prevent the battery from becoming discharged.
CAUTION
Do not use for extended periods of time with the engine stopped. This could result in a discharged battery.

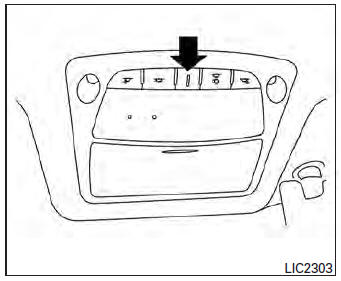

Console light
The console light will turn on whenever the parking lights or headlights are illuminated.
Ecu diagnosis information
Ipdm e/r (intelligent power distribution module engine room)
Reference Value
Values on the diagnosis tool
Terminal layout
Physical values
Fail-Safe
Can communication control
When can communication with ecm and bcm is impossible, ipdm e/r performs
fail-safe ...
General Precautions
Do not operate the
engine for an extended period of time without proper exhaust ventilation.
Keep the work area well ventilated and free of any inflammable
materials. Special care should be taken when handling any inflammable
or poisonous materials, such as gasoline, refrigerant gas,
etc. Wh ...
System description
Component parts
AUTOMATIC DOOR LOCK/UNLOCK FUNCTION
AUTOMATIC DOOR LOCK/UNLOCK FUNCTION
: Component Parts Location
BCM
(view with instrument panel removed)
Main power window and door lock/unlock
switch
Power window and door lock/unlock
switch RH
Front door lock key cylinder ...
