Nissan Sentra Owners Manual: Installing front license plate

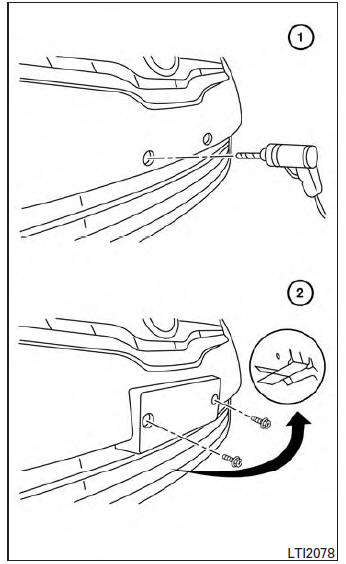

Use the following steps to mount the front license plate:
- Make holes on the plastic finisher at the
location mark (small dimple) using a 0.20 in
(5 mm) drill. Apply light pressure to the drill.
Install the license plate holder using the two screws provided with the holder.
- Mount the license plate using two M6- 14mm bolts.
