Nissan Sentra Owners Manual: Head restraints/Headrests

WARNING

Head restraints/headrests supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjustable head restraints/headrests must be adjusted properly, as specified in this section.

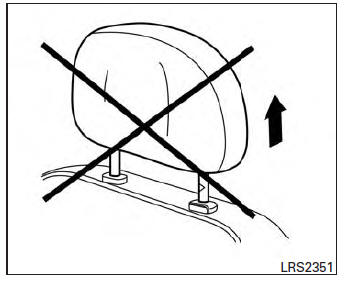

Check the adjustment after someone else uses the seat. Do not attach anything to the head restraint/headrest stalks or remove the head restraint/headrest. Do not use the seat if the head restraint/headrest has been removed. If the head restraint/headrest was removed, reinstall and properly adjust the head restraint/headrest before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the head restraints/headrests. This may increase the risk of serious injury or death in a collision.

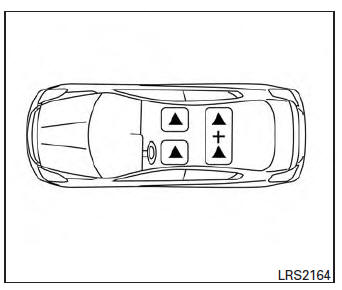

The illustration shows the seating positions


The illustration shows the seating positions equipped with head restraints/headrests.

Indicates the seating position is equipped with a head restraint.

Indicates the seating position is equipped with a headrest.

+ Indicates the seating position is not equipped with a head restraint or headrest (if applicable).

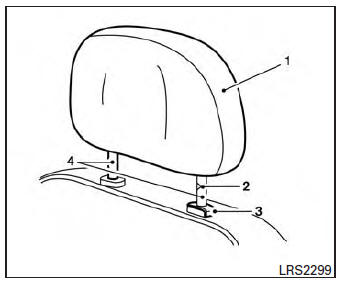

Adjustable head restraint/headrest components
Adjustable head restraint/headrest components

  1. Removable head restraint/headrest
  2. Multiple notches
  3. Lock knob
  4. Stalks

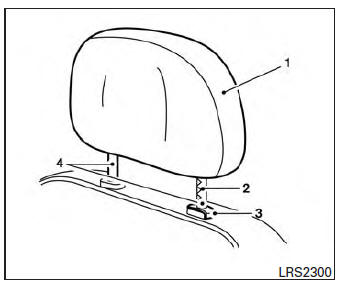

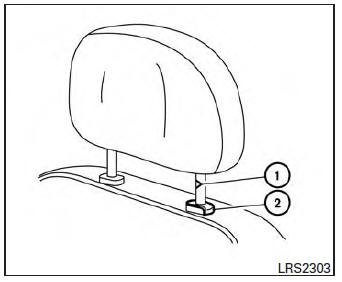

Non-adjustable head restraint/ headrest components
Non-adjustable head restraint/ headrest components

  1. Removable head restraint/headrest
  2. Single Notch
  3. Lock knob
  4. Stalks

Remove

Use the following procedure to remove the head


Use the following procedure to remove the head restraint/headrest.

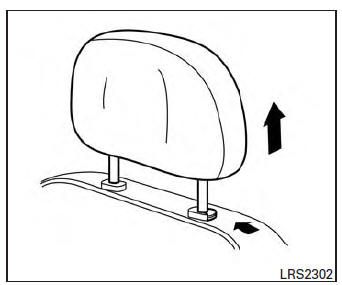

  1. Pull the head restraint/headrest up to the highest position.
  2. Push and hold the lock knob.
  3. Remove the head restraint/headrest from the seat.
  4. Store the head restraint/headrest properly in a secure place so it is not loose in the vehicle.
  5. Reinstall and properly adjust the head restraint/headrest before an occupant uses the seating position.

Install
Install

  1. Align the head restraint/headrest stalks with the holes in the seat. Make sure the head restraint/headrest is facing the correct direction.

    The stalk with the notch (notches) 1 must be installed in the hole with the lock knob 2.

  2. Push and hold the lock knob and push the head restraint/headrest down.
  3. Properly adjust the head restraint/headrest before an occupant uses the seating position.

Adjust
Adjust

For adjustable head restraint/headrest

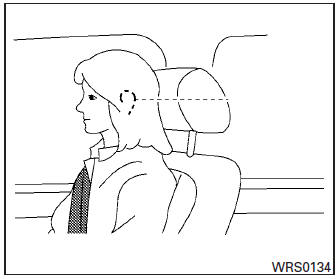

Adjust the head restraint/headrest so the center is level with the center of your ears. If your ear position is still higher than the recommended alignment, place the head restraint/headrest at the highest position.

For non-adjustable head restraint/ headrest
For non-adjustable head restraint/ headrest

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

Raise
Raise

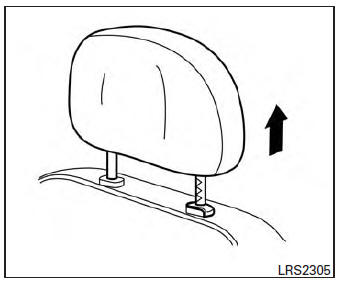

To raise the head restraint/headrest, pull it up.

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

Lower
Lower

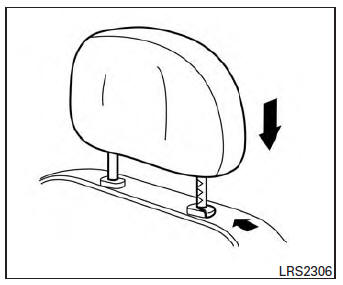

To lower, push and hold the lock knob and push the head restraint/headrest down.

Make sure the head restraint/headrest is positioned so the lock knob is engaged in the notch before riding in that designated seating position.
