Explanation of general maintenance
General maintenance includes those items which should be checked during the normal day-to-day operation of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform checks and inspections themselves or have their nissan dealers do them.

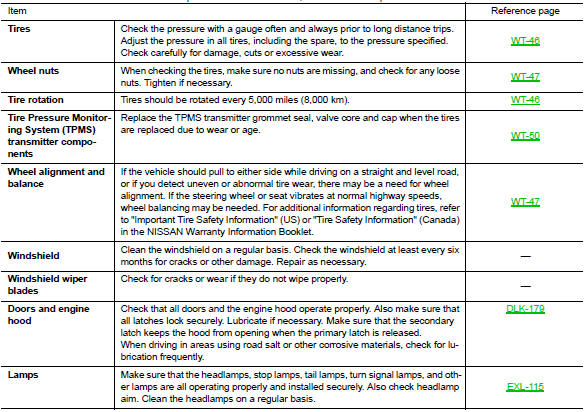

Outside the vehicle
The maintenance items listed here should be performed from time to time, unless otherwise specified.

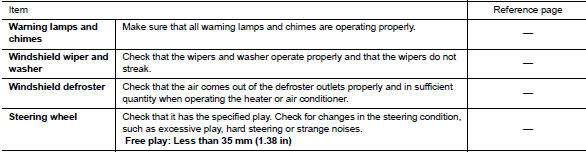

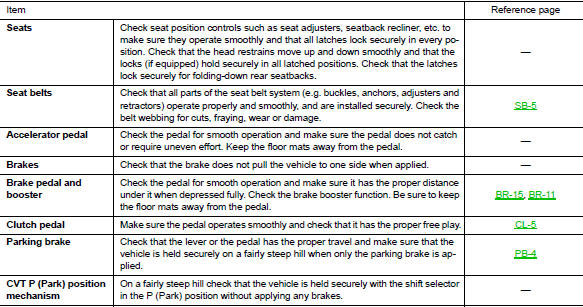

Inside the vehicle
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the vehicle, etc.

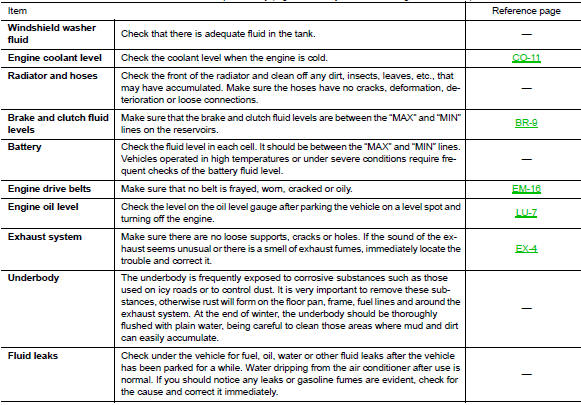

Under the hood and vehicle
The maintenance items listed here should be checked periodically (e.G. Each time you check the engine oil or refuel).
Three-way catalyst
The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.
WARNING
The exhaust gas and the exhaust system
are very hot. Keep people, animals
or flammab ...
Basic inspection
DIAGNOSIS AND REPAIR WORK FLOW
Work Flow
NOTE:
“DTC” includes DTC at the 1st trip.
1.OBTAIN INFORMATION ABOUT SYMPTOM
Refer to TM-140, "Diagnostic Work Sheet" and interview the customer to obtain
the malfunction information
(conditions and environment when the malfunctio ...
Door outside molding
Exploded view
Front door assembly
Grommet
Front door outside molding
Rear door outside molding
Rear door assembly
Door glass
Clip
Front door outside molding
FRONT DOOR OUTSIDE MOLDING : Removal and Installation
REMOVAL
Remove front door mirror. Refer to MIR-18, &quo ...
