NOTE:
The ignition switch must be placed in the ON position for the gauge to give a reading.

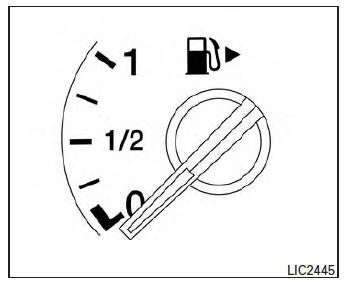

The gauge indicates the approximate fuel level in the tank.
The gauge may move slightly during braking, turning, acceleration, or going up or down hills.
The low fuel warning light comes on when the amount of fuel in the tank is getting low.
Refill the fuel tank before the gauge registers 0 (Empty).
The
indicates that the
fuel-filler door is
located on the passenger’s side of the vehicle.
CAUTION
After a few driving trips. the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected by a NISSAN dealer.
