Nissan Sentra Service Manual: Front wiper motor lo circuit
Component function check
1. Check front wiper lo operation
Ipdm e/r auto active test
- Start ipdm e/r auto active test. Refer to pcs-9, "diagnosis description" (with intelligent key system) or pcs-37, "diagnosis description" (without intelligent key system).
- Check that the front wiper operates at the lo operation.
Consult active test
- Select FRONT WIPER of IPDM E/R active test item.
- While operating the test item, check that front wiper lo operation and off.
Lo : front wiper lo operation
Off : stop the front wiper.
Is the inspection result normal? Yes >> front wiper motor lo circuit is normal.
No >> refer to ww-37, "diagnosis procedure".
Diagnosis procedure
Regarding Wiring Diagram information, refer to WW-24, "Wiring Diagram - With Intelligent Key" or WW-29, "Wiring Diagram - Without Intelligent Key".
1. Check front wiper motor (lo) input voltage
Consult active test
- Turn the ignition switch OFF.
- Disconnect front wiper motor.
- Turn the ignition switch on.
- Select front wiper of ipdm e/r active test item.

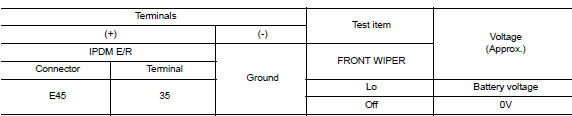

- While operating the test item, check voltage between IPDM E/R harness connector E45 and ground.
Is the inspection result normal? YES >> GO TO 2.
NO >> Replace IPDM E/R. Refer to PCS-30, "Removal and Installation" (with Intelligent Key system) or PCS-58, "Removal and Installation" (without Intelligent Key system).
2. Check front wiper motor (lo) open circuit
- Turn the ignition switch OFF.
- Disconnect ipdm e/r.
- Check continuity between ipdm e/r harness connector e45 and front wiper motor harness connector e1.
Is the inspection result normal?
Yes >> go to 3.
No >> repair or replace the harness or connectors.
3. Check front wiper motor (lo) short circuit
Check continuity between IPDM E/R harness connector E45 and ground.
Is the inspection result normal? YES >> Repair or replace the harness or connectors.
NO >> Replace front wiper motor. Refer to WW-62, "Removal and Installation".
Wiper and washer fuse
Description
Diagnosis procedure
1. Check fuses
Check that the following fuses are not blown.
Is the fuse blown?
Yes >> replace the blown fuse after repairing the affected circuit.
...
Front wiper motor hi circuit
Component function check
1. Check front wiper hi operation
Ipdm e/r auto active test
Start ipdm e/r auto active test. Refer to ww-15, "diagnosis description"
(with intelligent key ...
