Nissan Sentra Service Manual: Front wiper drive assembly

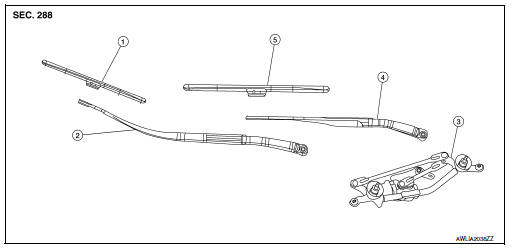

Exploded view
- Wiper blade (RH)
- Wiper arm (RH)
- Wiper drive assembly
- Wiper arm (LH)
- Wiper blade (LH)
Removal and installation
REMOVAL
- Remove the cowl top. Refer to EXT-26, "Removal and Installation".
- Disconnect the harness connector from the wiper drive assembly.
- Remove the wiper drive assembly bolts.
- Remove the wiper drive assembly.
INSTALLATION
- Install the wiper drive assembly.
- Install the wiper drive assembly bolts.
- Connect the harness connector to the wiper drive assembly.
- Install the cowl top. Refer to EXT-26, "Removal and Installation".
- Check the operation of the wiper blades and that they stop at the normal position.
Wiper and washer switch
Removal and installation
The wiper and washer switch is serviced as an assembly with the combination switch. Refer to EXL-128, "Removal and Installation".
Wiper blade
Wiper blade
WIPER BLADE : Removal and Installation
REMOVAL
Put the wiper arms in the service position.
Turn the ignition switch ON and then OFF.
Within 1 minute, activate washer switch 2 ...
Service data and specifications (SDS)
Specifications
WINDSHIELD WASHER FLUID
...
Other materials:
Hoses
HOSE REMOVAL AND INSTALLATION
To prevent damage to
rubber hose, do not pry off rubber hose with
tapered tool or screwdriver.
To reinstall the
rubber hose securely, make sure that hose insertion
length and orientation is correct. (If tube is equipped with hose ...
