Nissan Sentra Service Manual: Front door finisher

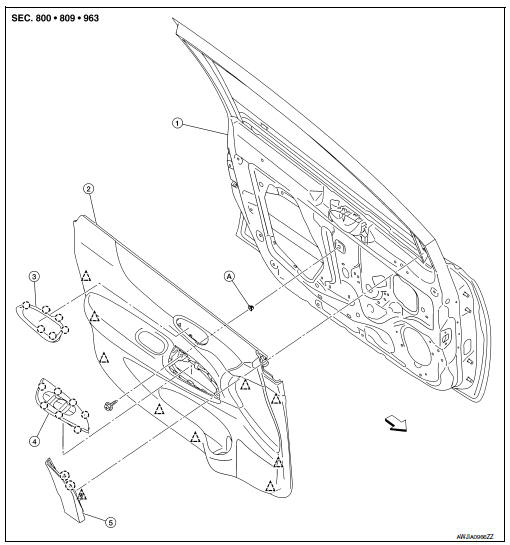

Exploded View


  1. Front door panel
  2. Front door finisher
  3. Inside door handle escutcheon
  4. Main power window and door lock/ unlock switch finisher
  5. Door mirror corner finisher
  1. Grommet

Pawl Clip


Front Pawl


NOTE: Front


NOTE:

LH side shown; RH similar.

Removal and Installation

CAUTION:

REMOVAL

  1. Remove door mirror corner finisher (1) according to numerical order of arrows as shown.


  1. Remove inside door handle escutcheon.
  1. Apply protective tape (A) to protect the component from damage as shown.


  1. Insert a suitable tool (A) as shown between inside door handle escutcheon and inside door handle.


  1. With suitable tool (A) in position, insert a second suitable tool (B) as shown, then release pawl.

Pawl



  1. Pull upward on the inside door handle escutcheon as shown to release the pawls on the upper portion of inside door handle escutcheon.

Pawl



  1. Press down on the inside door handle escutcheon as shown to release the pawls on the lower portion of inside door handle escutcheon.

Pawl



  1. Insert a suitable tool (A) as shown to release the remaining pawl and remove.

Pawl



  1. Remove the main power window and door lock/unlock switch (LH). Refer to PWC-70, "Removal and Installation".
  2. Remove the main power window and door lock/unlock switch (RH). Refer to PWC-71, "Removal and Installation".
  3. Remove front door finisher.
  1. Remove front door finisher screw (A).


  1. Apply protective tape (A) to protect the component from damage as shown.


  1. Release front door finisher clips using a suitable tool (A) as shown.

Clip



  1. Remove front door finisher as shown.

INSTALLATION

Installation is in the reverse order of removal

CAUTION:

When installing, check that clips are accurately aligned with the holes on the door panel, then press in.

Removal and installation
...

Rear door finisher
