NOTE:
The ignition switch must be placed in the ON position for the gauge to give a reading.
The gauge indicates the engine coolant temperature.

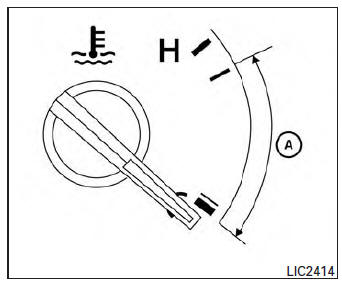

The engine coolant temperature is within the normal range when the reading is within the zone A shown in the illustration.
The engine coolant temperature varies with the outside air temperature and driving conditions.
CAUTION
If the gauge indicates a coolant temperature near the hot (H) end of the normal range, reduce vehicle speed to decrease the temperature. If the gauge is over the normal range, stop the vehicle as soon as safely possible. If the engine is overheated, continued operation of the vehicle may seriously damage the engine. See “If your vehicle overheats” in the “In case of emergency” section for immediate action required
Precaution for Work
When removing or disassembling each component, be careful not to damage
or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
When removing (disengaging) components with a screwdriver or similar
tool, be sure to wrap the component
with a ...
Intake manifold
Exploded View
Clamp
PCV hose
Bracket
Intake manifold gasket
Intake manifold
Mount rubber
Clamp
EVAP hose
EVAP canister purge volume
control solenoid valve
Electric throttle control actuator gasket
Electric throttle control actuator
Clamp
Water hose
Water hose
...
Tilt operation
Pull the lock lever down 1 and adjust the steering
wheel up or down 2 to the desired position.
Push the lock lever up 1 firmly to lock the
steering wheel in place.
WARNINGDo not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accide ...
