Nissan Sentra Service Manual: Ecu diagnosis information

Av control unit

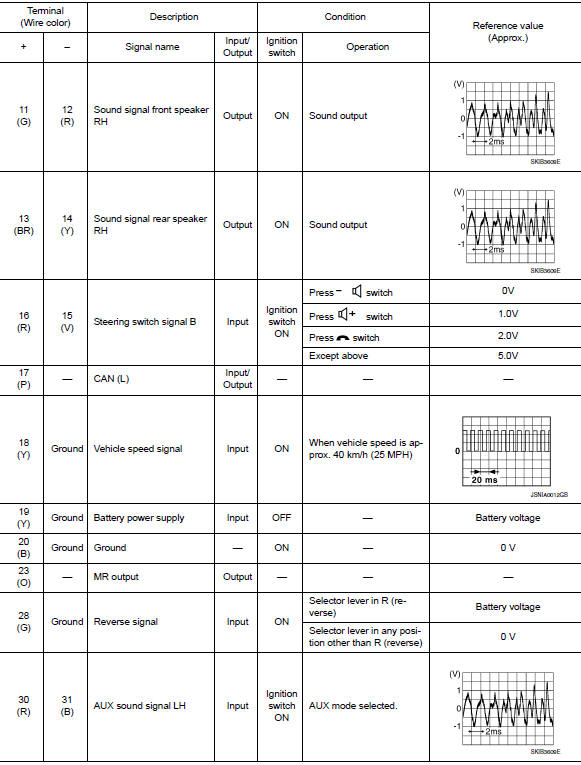

Reference value

TERMINAL LAYOUT

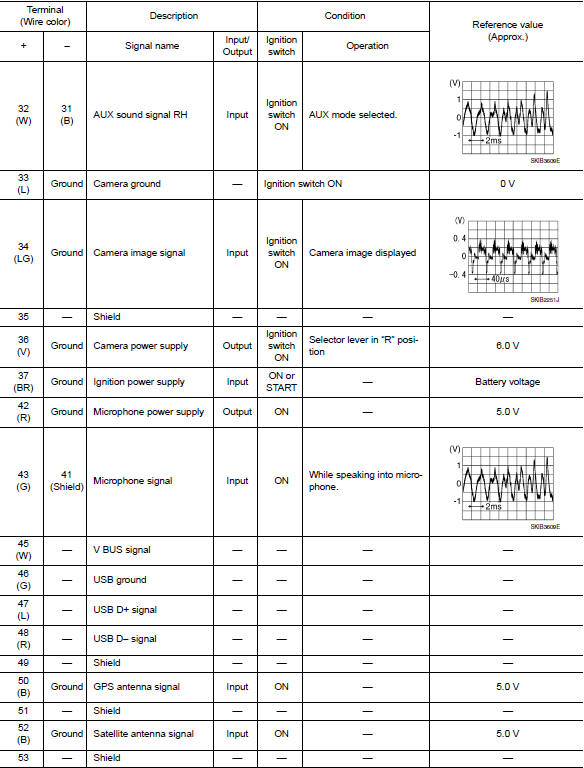

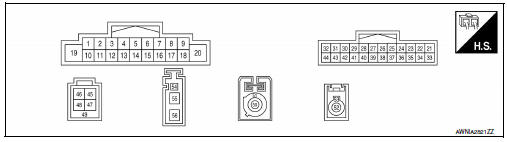

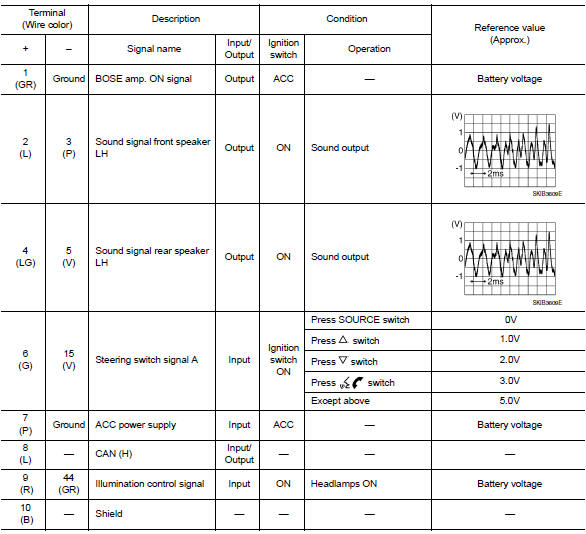

PHYSICAL VALUES


PHYSICAL VALUES

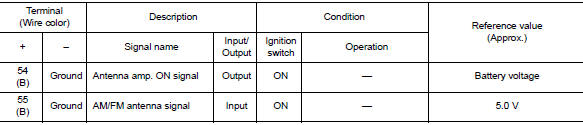

Dtc index

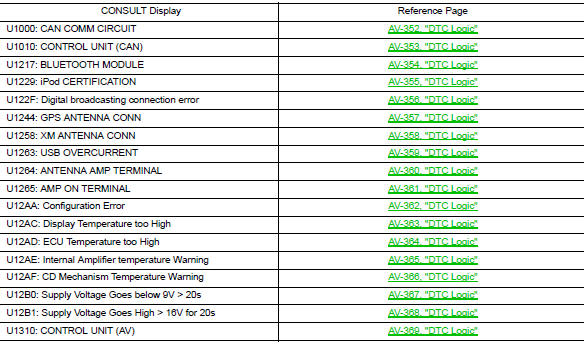

Dtc index

Bose speaker amp


Bose speaker amp

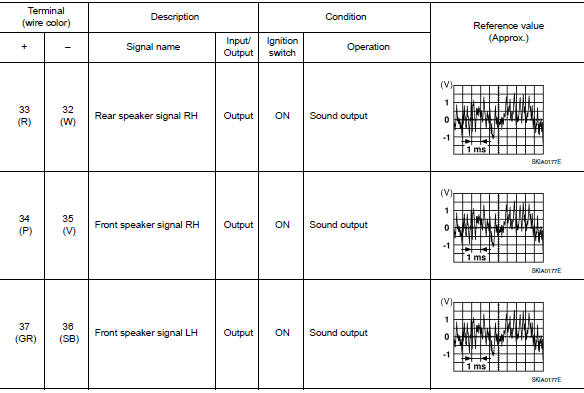

Reference value

TERMINAL LAYOUT

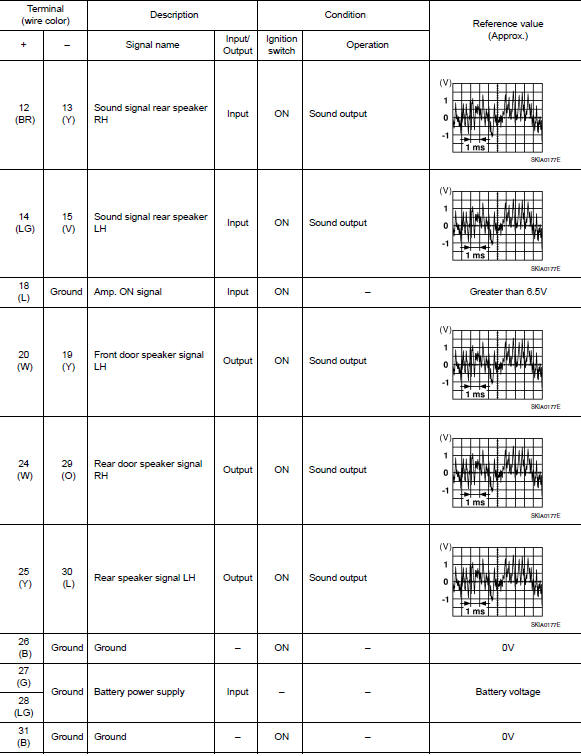

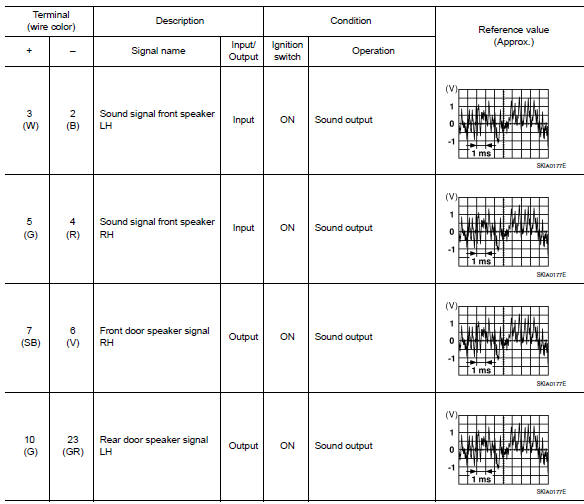

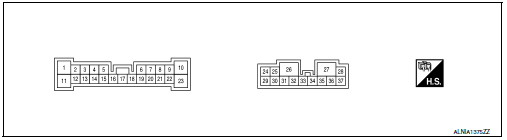

PHYSICAL VALUES


PHYSICAL VALUES



Wiring diagram


System description
Component parts Component parts location Front tweeter LH GPS antenna Steering switches AV control unit Front tweeter RH Microphone Front door speaker LH Front door speaker RH ...

Wiring diagram
Navigation with bose Wiring diagram ...
