Nissan Sentra Service Manual: Ecu diagnosis information

Audio unit

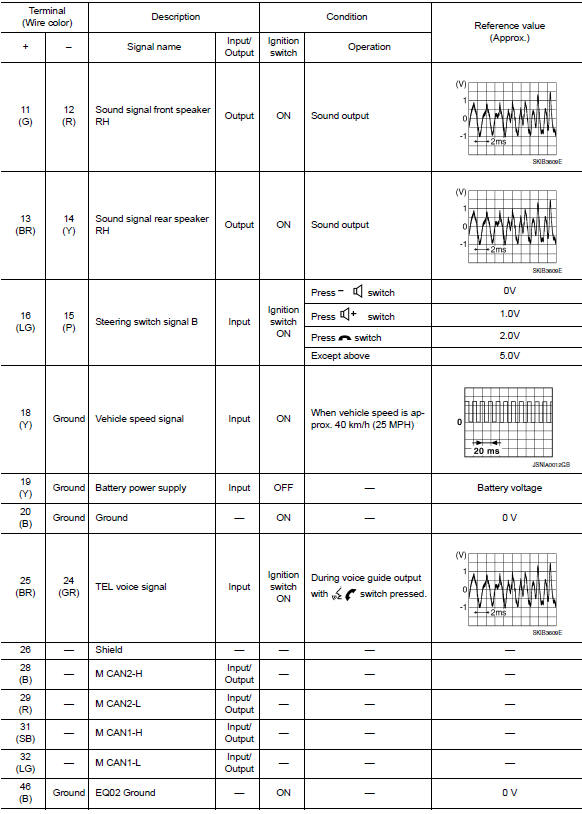

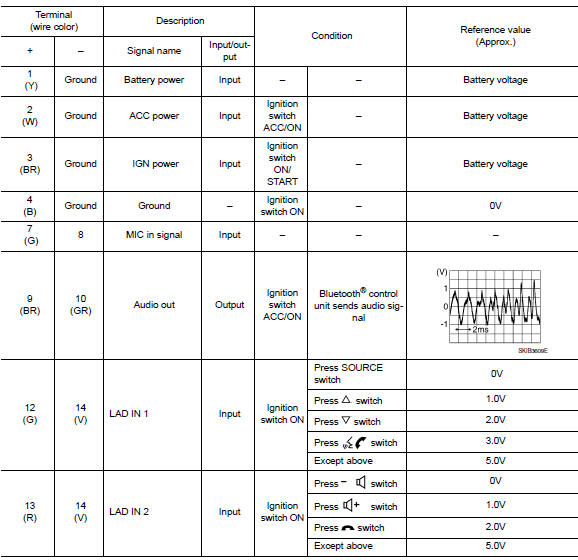

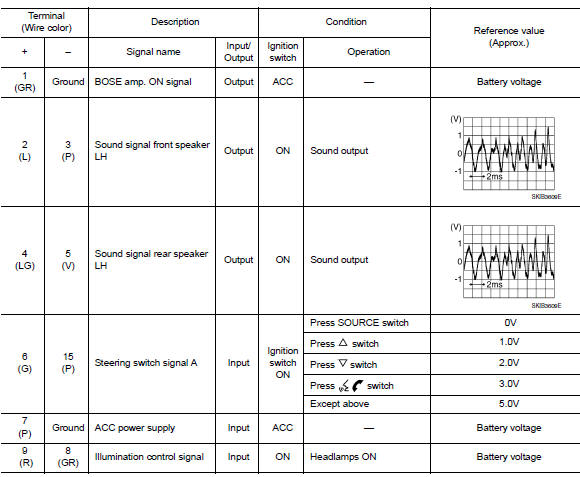

Reference value

TERMINAL LAYOUT

PHYSICAL VALUES


PHYSICAL VALUES

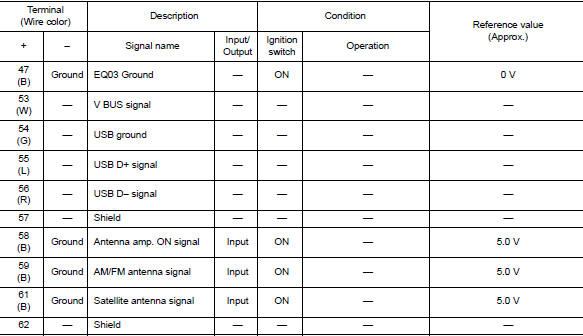

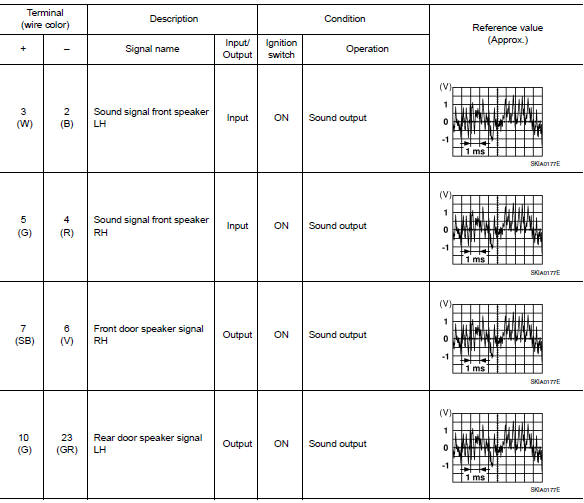

Bose speaker amp


Bose speaker amp

Reference value

TERMINAL LAYOUT

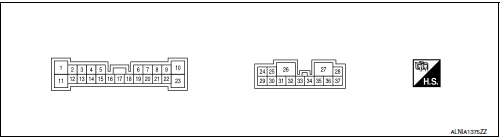

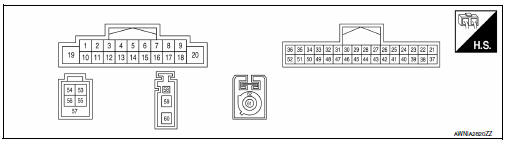

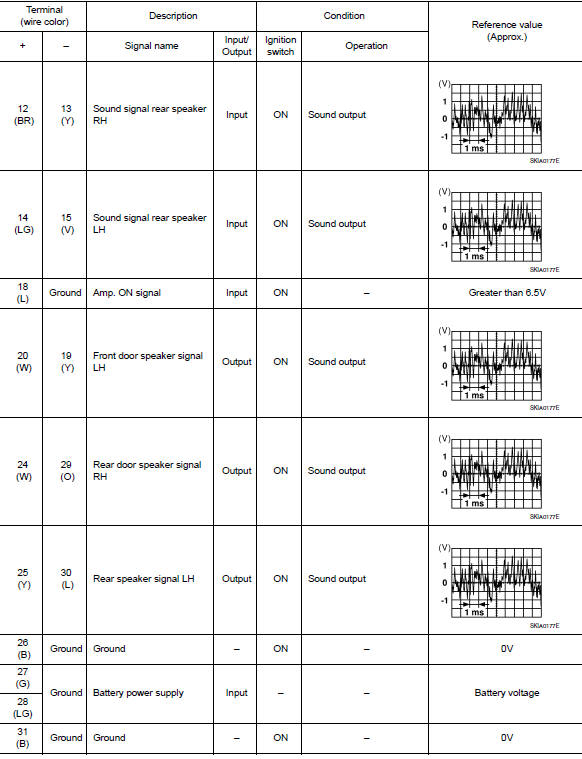

PHYSICAL VALUES


PHYSICAL VALUES

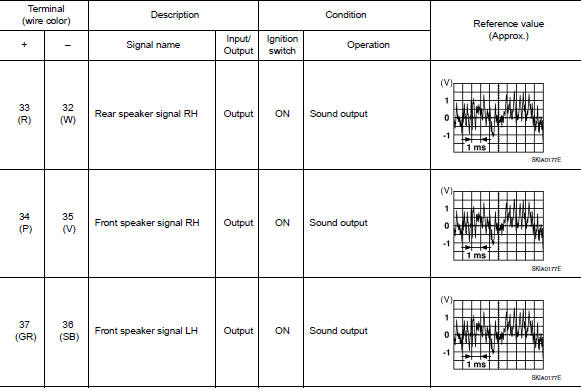

BluetoothВ® control unit


BluetoothВ® control unit

Reference value

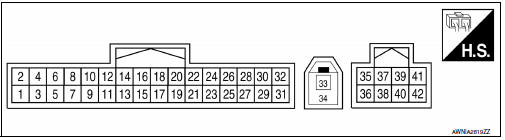

TERMINAL LAYOUT

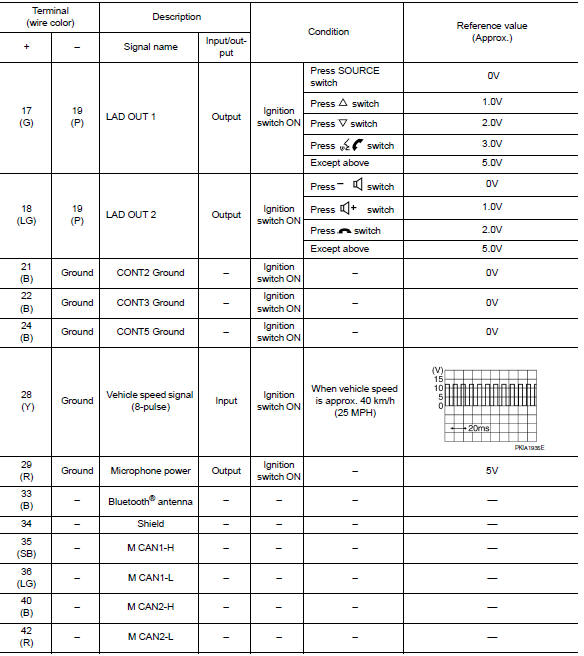

PHYSICAL VALUES


PHYSICAL VALUES


Wiring diagram


System description
Component parts Component parts location Front tweeter LH Steering switches Audio unit Front tweeter RH Microphone Front door speaker LH Front door speaker RH Rear door speaker ...

Wiring diagram
Display audio with bose Wiring diagram ...
