Nissan Sentra Service Manual: Ecu diagnosis information

Audio unit

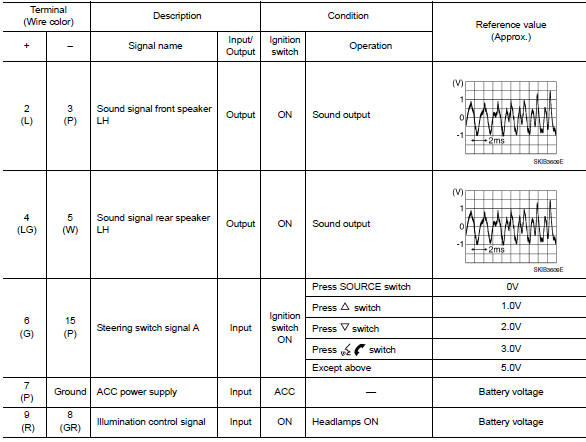

Reference value

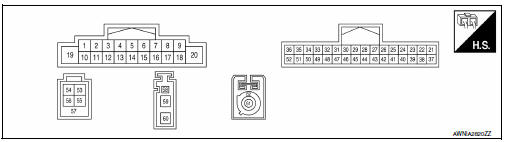

Terminal layout

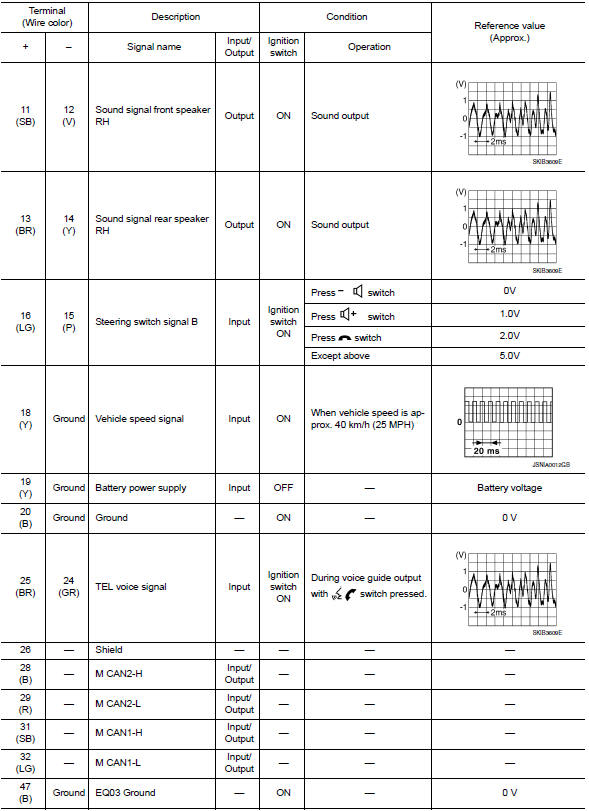

Physical values

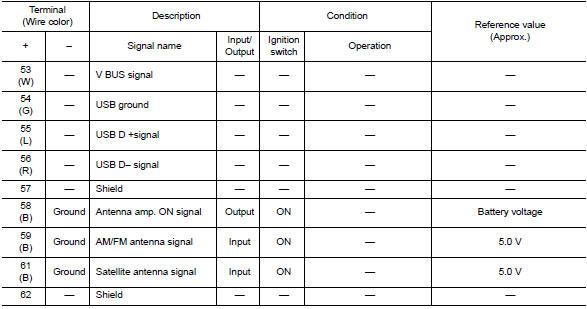

Physical values

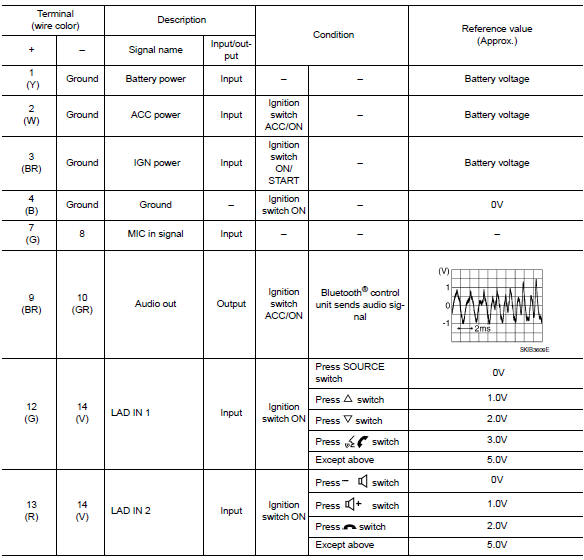

BluetoothВ® control unit


BluetoothВ® control unit

Reference Value

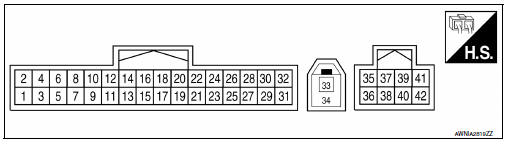

Terminal layout

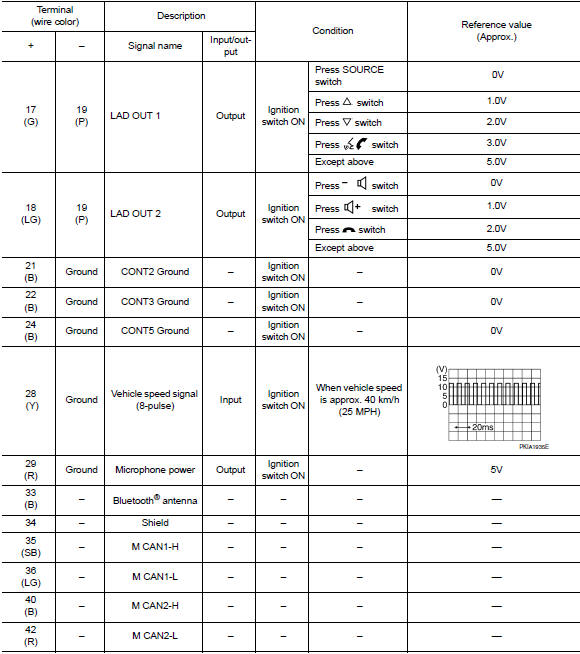

Physical values


Physical values


Wiring diagram


System description
Component parts Component parts location Front tweeter LH Steering switches Audio unit Front tweeter rh Microphone Front door speaker lh Front door speaker rh Rear speaker rh ...

Wiring diagram
Display audio without bose Wiring diagram ...
