Nissan Sentra Service Manual: Door parting seal

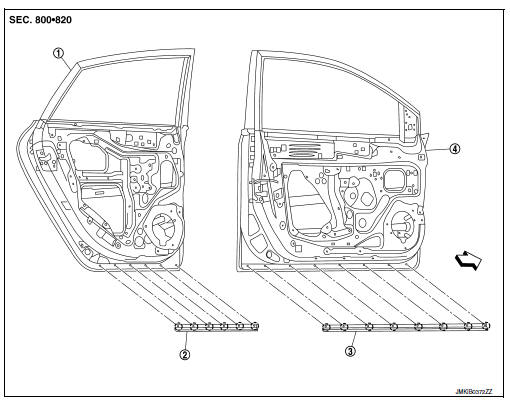

Exploded View
- Rear door panel
- Rear door parting seal
- Front door parting seal
- Front door panel
Pawl
Front
Removal and Installation
- Release parting seal pawls, then remove parting seal.
INSTALLATION
Installation is in the reverse order of removal.
Door outside molding
Exploded view
Front door assembly
Grommet
Front door outside molding
Rear door outside molding
Rear door assembly
Door glass
Clip
Front door outside molding
FRONT DOOR OUT ...
License lamp finisher
Exploded view
Rear view camera
Trunk lid opener request switch
License lamp finisher
Clip
Pawl
Removal and installation
Remove trunk lid finisher. Refer to INT-45, "Removal ...
