Nissan Sentra Service Manual: Diagnosis system (BCM)
Common item
Common item : consult function (bcm - common item)
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.

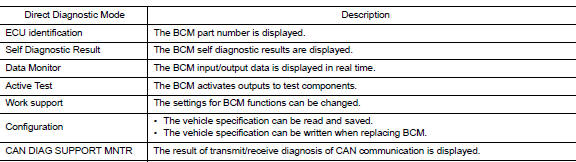

SYSTEM APPLICATION
BCM can perform the following functions.

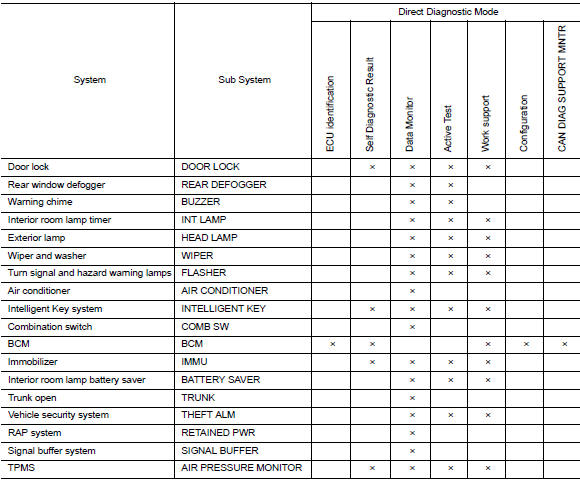

Intelligent key
Intelligent key : consult function (bcm - intelligent key)
SELF DIAGNOSTIC RESULT
Refer to BCS-49, "DTC Index".

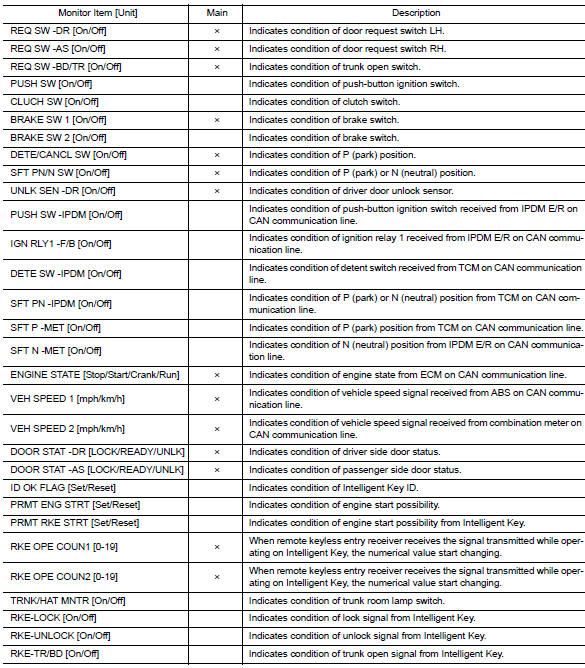

DATA MONITOR

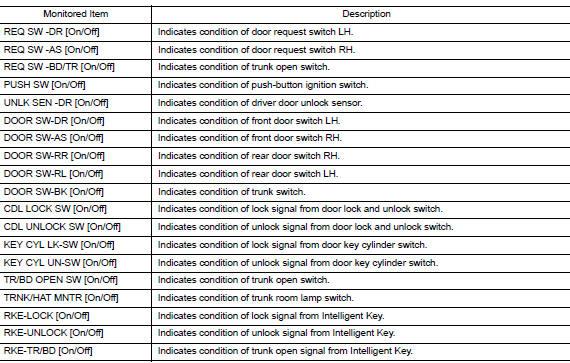

ACTIVE TEST

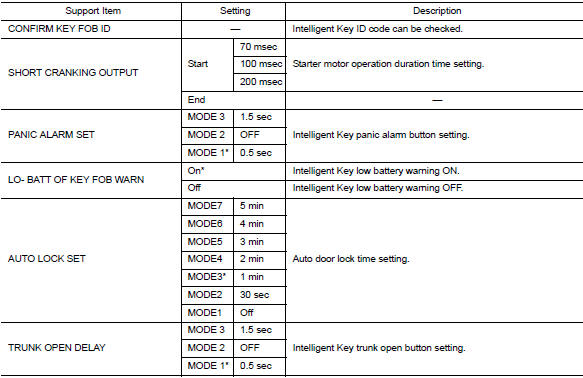

WORK SUPPORT
*: Initial Setting
Immu
IMMU : CONSULT Function (BCM - IMMU)
SELF DIAGNOSTIC RESULT
Refer to BCS-49, "DTC Index".

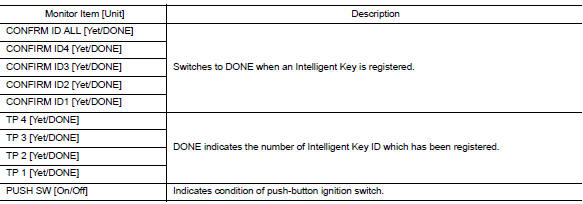

DATA MONITOR

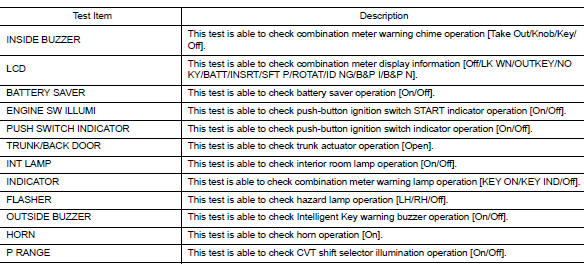

ACTIVE TEST

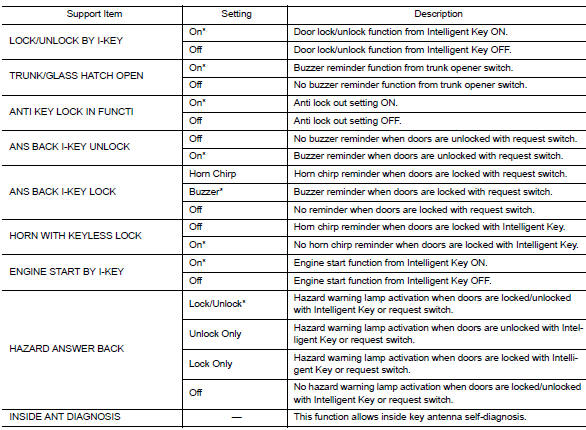

WORK SUPPORT
Theft alm
Theft ALM : consult function (bcm - theft)
DATA MONITOR
ACTIVE TEST

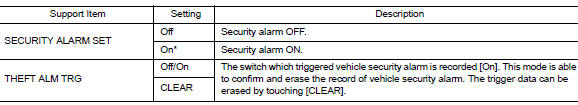

WORK SUPPORT
*: Initial setting
System description
Component parts
Component parts location
BCM (view with instrument panel removed)
ECM
IPDM E/R
Combination meter
Security indicator lamp
CVT shift selector (park position
swit ...
Ecu diagnosis information
ECM, IPDM E/R, BCM
List of ECU Reference
...
