Nissan Sentra Service Manual: Component parts

Moonroof

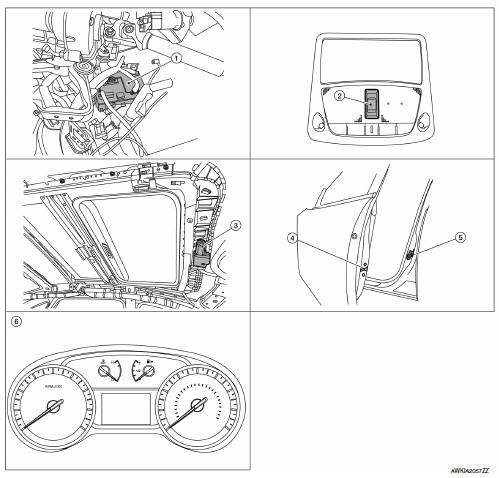

Moonroof : component parts location


  1. Bcm (view under instrument panel, left side of vehicle)
  2. Moonroof switch
  3. Moonroof motor assembly (view with headliner removed)
  4. Front door lock assembly lh (key cylinder switch)
  5. Front door switch lh (rh similar)
  6. Combination meter

Moonroof : component description

Component

Function

Bcm Supplies the power supply to moonroof motor assembly.
Moonroof switch Transmits tilt up/down & slides open/close operation signal to moonroof motor assembly.
Moonroof motor assembly The moonroof motor and cpu are integrated into one unit that enables tilt up/down & slide open/ close by moonroof switch operation.
Front door switch Detects door open/close condition and transmits to BCM.
Combination meter Transmits vehicle speed signal to moonroof motor assembly.
System description
...

System
Moonroof Moonroof : system diagram Moonroof : system description Moonroof system Input/output signal chart Moonroof operation Moonroof motor assembly operates with the power supply th ...
