Nissan Sentra Service Manual: Clutch fluid

Inspection

FLUID LEAKAGE

CAUTION:

If leakage occurs around connections, reinstall the lines or replace damaged parts, if necessary.

FLUID LEVEL

Draining


Draining

CAUTION:

Do not spill clutch fluid onto painted surfaces. If fluid spills, wipe up immediately and wash the affected area with water.

  1. Connect a transparent vinyl hose to air bleeder of bleeding connector (1).


  1. Press the lock pin (1) into the bleeding connector (2), and maintain the position.


  1. Slide bleeding connector (1) in the direction of the arrow ( ) as shown.
  1. Clutch housing

Dimension (A) : 10 mm (0.39 in)


  1. Depress clutch pedal to gradually discharge clutch fluid.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the clutch tube to disconnect from the bleeding connector.

Refilling

CAUTION:

Do not spill clutch fluid onto painted surfaces. If fluid spills, wipe up immediately and wash the affected area with water.

  1. Check that there is no foreign material in reservoir tank, and then fill with new clutch fluid.

CAUTION:

Do not reuse drained clutch fluid.

  1. Connect a transparent vinyl hose to air bleeder of bleeding connector (1).


  1. Press the lock pin (1) into the bleeding connector (2), and maintain the position.

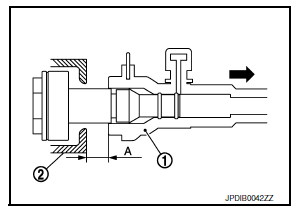

  1. Slide bleeding connector (1) for the specified distance (A) in the direction of the arrow ( shown.) as
    shown.

(2) : Clutch housing


  1. Slowly depress clutch pedal to the full stroke position, and then release the pedal.

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the clutch tube to disconnect from the clutch housing.

  1. Repeat step 5 at intervals of 2 or 3 seconds until new clutch fluid is discharged.

CAUTION:

Monitor clutch fluid level in reservoir tank so as not to empty the tank.

  1. Return clutch tube and lock pin in their original positions while clutch pedal is depressed.
  2. Perform the air bleeding. Refer to CL-9, "Air Bleeding".

Air Bleeding

CAUTION:

  1. Fill reservoir tank with new clutch fluid.

CAUTION:

Do not reuse drained clutch fluid.

  1. Connect a transparent vinyl hose to air bleeder of bleeding connector (1).
  2. Depress and release the clutch pedal slowly and fully 15 times at an interval of 2 to 3 seconds and release the clutch pedal.


  1. Press the lock pin (1) into the bleeding connector (2), and maintain the position.


  1. Slide bleeding connector (1) in the direction of the arrow ( ) as shown and immediately depress the clutch pedal and hold it, to bleed the air from the system.

(2) : Clutch housing

Dimension (A) : 10 mm (0.39 in)

Dimension (A) : 10 mm (0.39 in)


Dimension (A) : 10 mm (0.39 in)

CAUTION:

Clutch tube is under hydraulic pressure; do not allow the clutch tube to disconnect from the clutch housing.

  1. Return clutch tube and lock pin in their original positions.
  2. Release clutch pedal and wait for 5 seconds
  3. Repeat steps 3 to 7 until no bubbles are observed in the clutch fluid.
  4. Check that the fluid level in the reservoir tank is within the specified range after air bleeding. Refer to CL- 7, "Inspection".
