Nissan Sentra Service Manual: Charging system

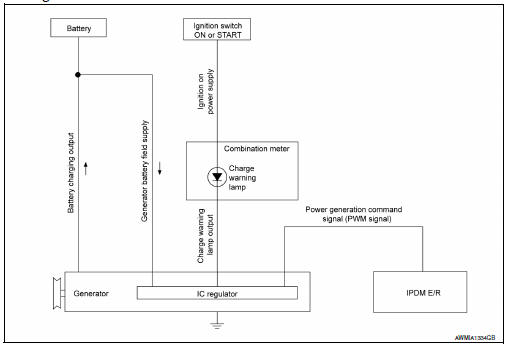

System Diagram

System Description


System Description

The generator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.

The voltage output is controlled by the IC regulator.

Component Description

Power generation voltage variable control system

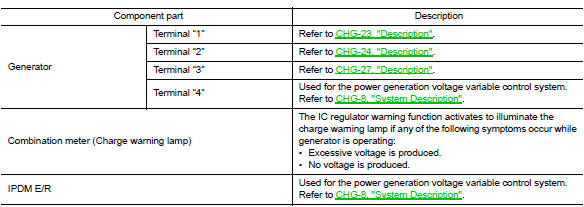

Component parts
Component parts location Generator IPDM E/R (view with air inlet duct removed) ECM Battery current sensor Charge warning lamp indicator Component description Component part ...

Power generation voltage variable control system
System Diagram System Description Power generation variable voltage control system has been adopted. By varying the voltage to the generator, engine load due to power generation of the gener ...
