Nissan Sentra Service Manual: Body side trim

Nissan Sentra Service Manual / Body interior / Interior / Removal and installation / Body side trim

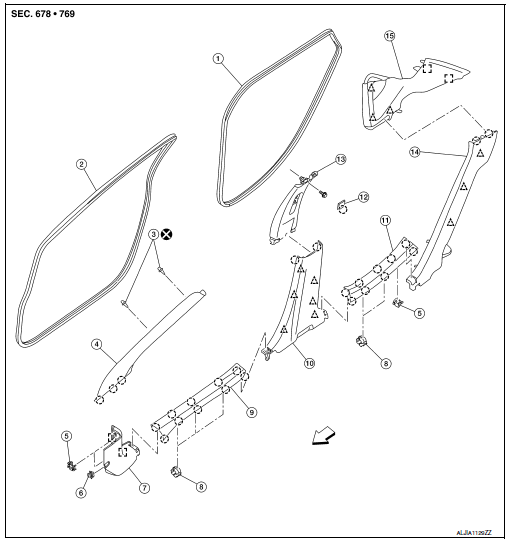

Exploded View


  1. Rear body side welt
  2. Front body side welt
  3. Tether clip
  4. Front pillar finisher
  5. Metal clip
  6. Dash clip
  7. Dash side finisher
  8. Harness protector
  9. Front kicking plate inner
  10. Center pillar lower finisher
  11. Rear kicking plate inner
  12. Cap
  13. Center pillar upper finisher
  14. Rear pillar lower finisher
  15. Rear pillar finisher

PawlClip


Metal clipPawl


FrontMetal clip


Front pillar finisherFront


Front pillar finisher

FRONT PILLAR FINISHER : Removal and Installation

REMOVAL

  1. Partially remove the front body side welt along the front pillar finisher.
  2. Remove front pillar finisher.

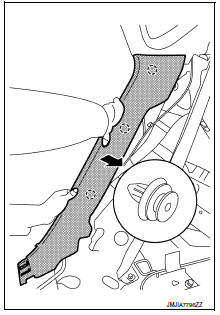

  1. Pull front pillar finisher to gain access to the front pillar finisher tether clips.

Tether clip



  1. Cut each tether clip to release front pillar finisher.


  1. Release pawls and remove front pillar finisher.

Pawl



  1. Remove front pillar finisher tether clips from body panel.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Kicking plate inner

KICKING PLATE INNER : Removal and Installation

FRONT

Removal

  1. Move front seat to the full forward position.
  2. Lift up front end lower of front kicking plate inner while pulling toward inside of the vehicle and release front kicking plate inner pawls as shown.

Pawl



  1. Begin at the front and release front kicking plate inner pawls as shown.

Pawl



  1. Lift up rear end lower of front kicking plate inner while pulling toward inside of the vehicle and release front kicking plate inner pawls as shown, then remove front kicking plate inner.

: Pawl


Installation


Installation

Installation is in the reverse order of removal.

Rear

Removal

  1. Lift up front end lower of rear kicking plate inner while pulling toward inside of the vehicle and release rear kicking plate inner pawls as shown.

: Pawl



  1. Begin at the front and release rear kicking plate inner pawls as shown.

: Pawl



  1. Lift up rear end lower of rear kicking plate inner while pulling toward inside of the vehicle and release rear kicking plate inner pawls as shown then remove rear kicking plate inner.

: Pawl


Installation


Installation

Installation is in the reverse order of removal.

Dash side finisher

DASH SIDE FINISHER : Removal and Installation

REMOVAL

  1. Remove front kicking plate inner. Refer to INT-24, "KICKING PLATE INNER : Removal and Installation".
  2. Remove dash side finisher
  1. Remove dash side finisher clip (A).


  1. Pull back dash side finisher as shown to release dash side finisher pawls and remove.

Pawl


INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

Body side welt

BODY SIDE WELT : Removal and Installation

FRONT

Removal

  1. Remove dash side finisher. Refer to INT-26, "DASH SIDE FINISHER : Removal and Installation".
  2. Remove front body side welt.

CAUTION:

Use care not to stretch out welt if it is to be reused.

Installation

Installation is in the reverse order of removal.

REAR

Removal

  1. Remove rear kicking plate inner. Refer to INT-24, "KICKING PLATE INNER : Removal and Installation".
  2. Remove rear body side welt.

CAUTION:

Use care not to stretch out welt if it is to be reused.

Installation

Installation is in the reverse order of removal.

Center pillar lower finisher

CENTER PILLAR LOWER FINISHER : Removal and Installation

CAUTION:

REMOVAL

  1. Move front seat to the full forward position.
  2. Remove front and rear body side welts. Refer to INT-27, "BODY SIDE WELT : Removal and Installation".
  3. Remove center pillar lower finisher.
  1. Release center pillar lower finisher clips using a suitable tool (A).

Clip



  1. Release center pillar lower finisher pawls as shown and remove.

: Pawl


INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, check that clips are accurately aligned with the holes on body panel, then press in.

Center pillar upper finisher

CENTER PILLAR UPPER FINISHER : Removal and Installation

REMOVAL

  1. Remove center pillar lower finisher. Refer to INT-27, "CENTER PILLAR LOWER FINISHER : Removal and Installation".
  2. Remove front seat belt D-ring anchor. Refer to SB-8, "Removal and Installation".
  3. Remove center pillar upper finisher.
  1. Apply protective tape (A) to protect the component from damage as shown.


  1. Release center pillar upper finisher cap pawl using a suitable tool (A) and remove.

Pawl



  1. Remove the center pillar upper finisher bolt.
  2. Release center pillar upper finisher lower clip using a suitable tool (A) as shown and remove.

: Clip


INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, check that clips are accurately aligned with the holes on body panel, then press in.

Rear pillar finisher

REAR PILLAR FINISHER : Removal and Installation

REMOVAL

  1. Remove rear pillar lower finisher. Refer to INT-30, "REAR PILLAR FINISHER : Removal and Installation - Rear Pillar Lower Finisher".
  2. Remove rear pillar finisher
  1. Release the clips as shown.

: Clip



  1. Release the metal clips as shown.

Metal clip



  1. Pull rear pillar finisher forward and remove.

INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, check that all clips are accurately aligned with the holes on body panel, then press in.

REAR PILLAR FINISHER : Removal and Installation - Rear Pillar Lower Finisher

REMOVAL

  1. Remove the rear seat bolster. Refer to SE-24, "Removal and Installation - Rear Seat Bolster".
  2. Remove the rear kicking plate inner. Refer to INT-24, "KICKING PLATE INNER : Removal and Installation".
  3. Remove the rear pillar lower finisher.
  1. Release pawls at the upper portion of the rear pillar lower finisher as shown.

: Pawl



  1. Release clips and remove the rear pillar lower finisher as shown.

: Clip


INSTALLATION


INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, check that clips and pawls are accurately aligned with the holes on body panel, then press in.
