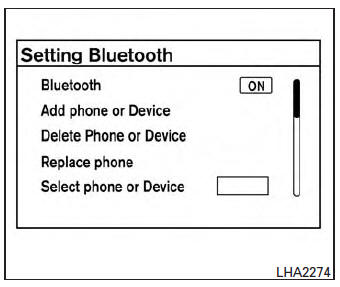

To access and adjust the settings for the Bluetooth® Hands-Free Phone System:
Select “On” or “Off” to turn the vehicle’s Bluetooth® system on or off.
To connect a phone to the system, see “Connecting procedure” in this section.
Select to delete a phone from the displayed list. The system will ask to confirm before deleting the phone.
Select to replace a phone from the displayed list. When a selection is made, the system will ask to confirm before proceeding. The recorded phonebook for the phone being deleted will be saved as long as the new phone’s phonebook is the same as the old phone’s phonebook.
Select to connect to a previously connected phone from the displayed list.
Select “Driver Only” to have incoming call information displayed only in the vehicle information display. Select “Both” to have incoming call information displayed in both the vehicle information display and the center display screen.
Select to turn on or off the automatic download of a connected phone’s phonebook.
Select to turn on or off the vehicle’s text messaging feature.
Select to adjust the volume of the sound that plays when a new text is received by a phone connected to the Bluetooth® Hands-Free Phone System. The setting all the way to the left indicates that the new text sound will be muted.
Select “Driver Only” to have incoming text messages displayed only in the vehicle information display. Select “Both” to have incoming text messages displayed in both the vehicle information display and the center display screen. Select “None” to have no display of incoming text messages.
Select to set a custom message that will be available with the standard options when sending a text message. To set a custom message, send a text message to your own phone number while the phone is connected to the system. Three custom messages can be set. Custom messages can only be set while the vehicle is stationary.
Select to turn on or off the Auto Reply function.
When enabled, the vehicle will automatically send a predefined text message to the sender when a text message is received while driving.
Select to choose the message that is sent when the Auto Reply function is enabled.
Choose from “I’m Driving” or one of the three custom messages stored in the system.
Select to choose whether or not the vehicle signature is added to outgoing text messages from the vehicle. This message cannot be changed or customized.
