AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Switch Name and Function

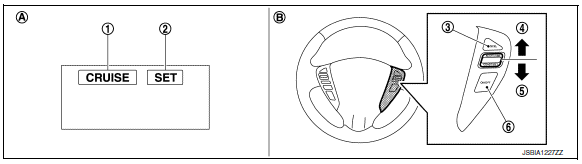

SWITCHES AND INDICATORS


  1. CRUISE indicator
  2. SET indicator*
  3. CANCEL switch
  4. ACCEL/RES switch
  5. COAST/SET switch
  6. ASCD MAIN switch
  1. On the combination meter
  2. On the steering wheel

*: Not applicable

Set speed range

ASCD system can be set the following vehicle speed.

Switch operation


Switch operation

Item

Function

CANCEL switch Cancels the cruise control driving.
ACCEL/RES switch
  • Resumes the set speed.
  • Increases speed incrementally during cruise control driving.
COAST/SET switch
  • Sets desired cruise speed.
  • Decreases speed incrementally during cruise control driving.
ASCD MAIN switch Master switch to activate the ASCD system.

Refer to EC-51, "AUTOMATIC SPEED CONTROL DEVICE (ASCD) : System Description" for ASCD operating instructions.
