Nissan Sentra Service Manual: AIR Breather hose

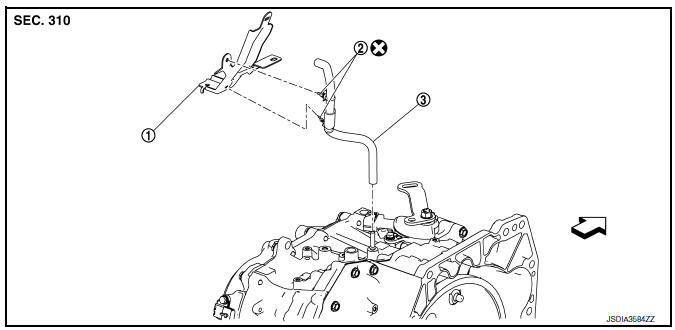

Exploded View
- Harness bracket
- Clip
- Air breather hose
Vehicle front
Always replace after every
disassembly.
Removal and Installation
REMOVAL
- Remove clips from harness bracket
- Remove air breather hose from transaxle assembly.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- Do not bend the air breather hose to prevent damage to the hose.
- Do not reuse clips.
- Securely install the clips to the harness bracket.
- Be sure to insert it fully until its end reaches the stop when inserting air breather hose (1) to transaxle tube (A).
- Install air breather hose to transaxle tube so that the paint mark (B) is facing frontward.
TCM
Exploded View
Bracket
TCM
: Vehicle front
: NВ·m (kg-m, in-lb)
Removal and Installation
CAUTION:
When replacing TCM, note the “CVTF DETERIORATION DATE” value
displ ...
G Sensor
Exploded View
G sensor
Bracket
Vehicle front
NВ·m (kg-m, ft-lb)
NВ·m (kg-m, in-lb)
Removal and Installation
WARNING:
Do not leave any objects (screwdrivers, tools, etc.) on ...
Other materials:
CVT Fluid filter
Exploded View
Transaxle assembly
CVT fluid filter
Fluid filter cover
CVT fluid
Removal and Installation
REMOVAL
Remove neighboring parts of CVT fluid filter.
Remove fluid filter cover mounting bolt (A).
Remove fluid filter cover (1) from transaxle by rotating leftw ...
