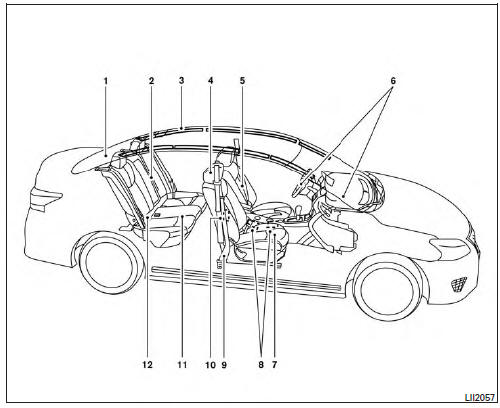

Nissan Sentra Owners Manual: Air bags, seat belts and child restraints
- Top tether anchor
- Rear seat belts
- Roof-mounted curtain side-impact supplemental air bag
- Head restraints/headrests
- Front seat belts
- Supplemental front-impact air bags
- Front seats
- Occupant classification sensor
- Seat belt with pretensioner
- Front seat-mounted side-impact supplemental air bag
- Rear seats
- LATCH (Lower Anchors and Tethers for CHildren) system
See the page number indicated in parentheses for operating details.
