Toyota Camry Owner's Manual (2023): Using the interior lights

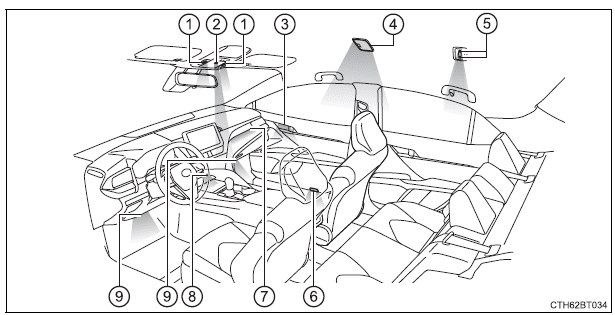

Interior lights list
- Front interior/personal lights
- Shift lever light (if equipped)
- Inside door handle lights (if equipped)
- Rear interior light (if equipped)
- Rear personal lights (if equipped)
- Door courtesy lights (if equipped)
- Instrument panel ornament light (if equipped)
- Front center console light (if equipped)
- Footwell lights (if equipped)
Interior lights

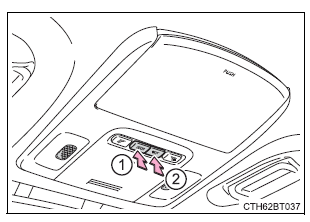

â– Front (if equipped)
The rear personal lights (if equipped) turn on/off together with the front interior light.
- Turns the lights on/off linked to door positions
- Turns the lights on/off

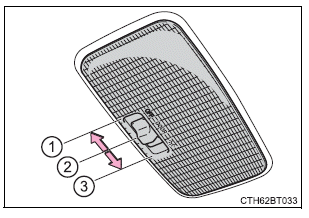

â– Rear (if equipped)
- Turns the light off
- Turns the light on/off linked to door positions
- Turns the light on

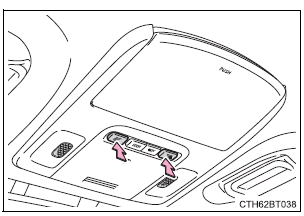

Personal lights
â– Front
Turns the lights on/off

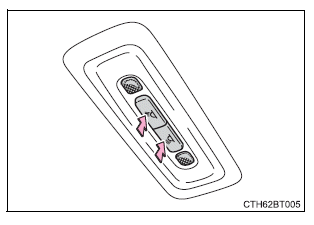

â– Rear (if equipped)
Turns the lights on/off
â– Illuminated entry system
Vehicles without a smart key system: The lights automatically turn on/off according to the engine switch position, whether the doors are locked/unlocked, and whether the doors are open/ closed.
Vehicles with a smart key system: The lights automatically turn on/off according to the engine switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are open/closed.
â– To prevent the battery from being discharged
If the interior lights remain on when the engine switch is turned off, the lights will go off automatically after 20 minutes.
â– The interior lights may turn on automatically when
If any of the SRS airbags deploy (inflate) or in the event of a strong rear impact, the interior lights will turn on automatically.
The interior lights will turn off automatically after approximately 20 minutes.
The interior lights can be turned off manually. However, in order to help prevent further collisions, it is recommended that they be left on until safety can be ensured.
(The interior lights may not turn on automatically depending on the force of the impact and conditions of the collision.)
â– Customization
Some functions can be customized.
Heated steering wheel/seat heaters/seat ventilators
Heated steering wheel and seat heaters heat the side grips of the
steering wheel and seats, respectively. Seat ventilators maintain
good ventilation by pulling air through the seat upholstery.
