Toyota Camry: Trunk

The trunk can be opened using the trunk opener switch, entry function (vehicles with a smart key system), wireless remote control or key.

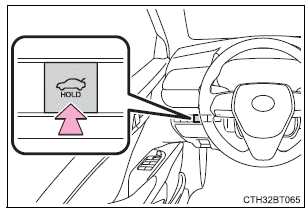

Opening the trunk from inside the vehicle

Press and hold the trunk opener switch.

Opening, closing and locking the doors

Opening the trunk from outside the vehicle

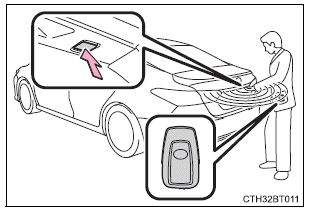

◆ Smart key system (if equipped)

While carrying the electronic key, press the button on the trunk lid.

When all the doors are unlocked using one of the following methods, the trunk can be opened without the electronic key:

  • Entry function
  • Wireless remote control
  • Door lock switches
  • Automatic door unlocking system
  • Mechanical key

Opening, closing and locking the doors

◆ Wireless remote control

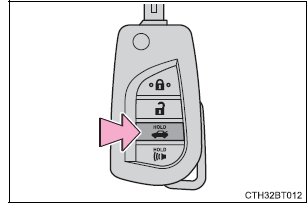

Vehicles without a smart key system

Opening, closing and locking the doors

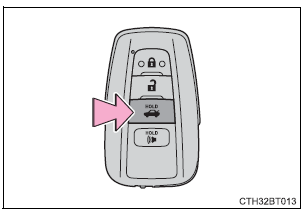

Vehicles with a smart key system

Opening, closing and locking the doors

Press and hold the switch.

A buzzer sounds.

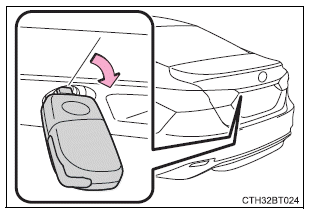

◆ Key

Vehicles without a smart key system

Turn the key clockwise to release the trunk lid.

Opening, closing and locking the doors

Vehicles with a smart key system

The trunk can be also opened using the mechanical key.

■Trunk light

The trunk light turns on when the trunk is opened.

■Function to prevent the trunk being locked with the electronic key inside (vehicles with a smart key system)

  • When all doors are locked, closing the trunk lid with the electronic key left inside the trunk will sound an alarm.

    In this case, the trunk lid can be opened by pressing the trunk release button on the trunk lid.

  • If the spare electronic key is put in the trunk with all the doors locked, the key confinement prevention function is activated so the trunk can be opened. In order to prevent theft, take all electronic keys with you when leaving the vehicle.
  • If the electronic key is put in the trunk with all the doors locked, the key may not be detected depending on the location of the key and the surrounding radio wave conditions. In this case, the key confinement prevention function cannot be activated, causing the doors to lock when the trunk is closed.

    Make sure to check where the key is before closing the trunk.

  • The key confinement prevention function cannot be activated if any one of the doors is unlocked. In this case, open the trunk using the trunk opener.

■Open trunk warning buzzer

If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light flashes and a buzzer sounds to indicate that the trunk is not yet fully closed.

■Internal trunk release lever

The trunk lid can be opened by pulling up the glow-in-the-dark lever located on the inside of the trunk lid.

The lever will continue to glow for some time after the trunk lid is closed.

Opening, closing and locking the doors

■If the smart key system or the wireless remote control does not operate properly (vehicles with a smart key system)

Use the mechanical key to unlock the trunk.

Replace the key battery with a new one if it is depleted.

■Customization

Some functions can be customized.

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

■Before driving

  • Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may open unexpectedly while driving and hit near-by objects or luggage in the trunk may be thrown out, causing an accident.
  • Do not allow children to play in the trunk.

    If a child is accidentally locked in the trunk, they could suffer from heat exhaustion, suffocation or other injuries.

  • Do not allow a child to open or close the trunk lid.

    Doing so may cause the trunk lid to open unexpectedly, or cause the child's hands, head, or neck to be caught by the closing trunk lid.

■Important points while driving

Never let anyone sit in the trunk. In the event of sudden braking or a collision, they are susceptible to death or serious injury.

WARNING

■Using the trunk

Observe the following precautions.

Failure to do so may cause parts of the body to be caught, resulting in serious injury.

  • Remove any heavy loads, such as snow and ice, from the trunk lid before opening it. Failure to do so may cause the trunk lid to suddenly shut again after it is opened.
  • When opening or closing the trunk lid, thoroughly check to make sure the surrounding area is safe.
  • If anyone is in the vicinity, make sure they are safe and let them know that the trunk is about to open or close.
  • Use caution when opening or closing the trunk lid in windy weather as it may move abruptly in strong wind.
  • On an incline it is more difficult to open or close the trunk lid than on a level surface, so beware of the trunk lid unexpectedly opening or closing by itself. Make sure that the trunk lid is fully open and secure before using the trunk.
  • When opening the trunk lid, take care so that it does not hit anyone in the face or any other part of the body.

Opening, closing and locking the doors

  • When closing the trunk lid, take extra care to prevent your fingers etc. from being caught.
  • When closing the trunk lid, make sure to press it lightly on its outer surface.

Opening, closing and locking the doors

  • Do not attach any accessories other than genuine Toyota parts to the trunk lid. Such additional weight on the trunk lid may cause the lid to suddenly shut again after it is opened.
