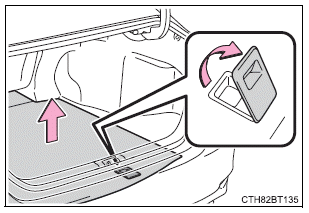

1. Lift up the hook of the luggage floor cover on the trunk floor.

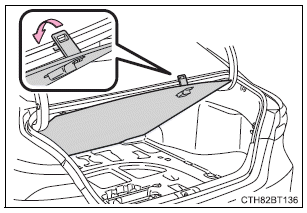

2. Secure the luggage floor cover using the hook provided.
3. Remove the tool tray.

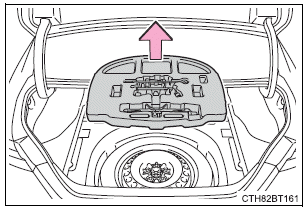

2WD models

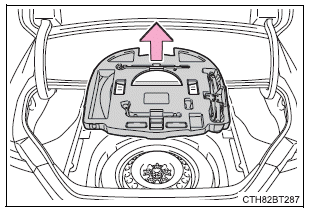

AWD models

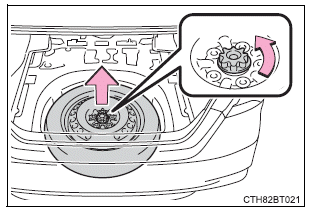

4. Loosen the center fastener that secures the spare tire.
When taking out or stowing the spare tire, make sure to firmly hold opposite end of the tire.
WARNING
â– When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body of the vehicle.
