Toyota Camry Owner's Manual (2023): Sun visors

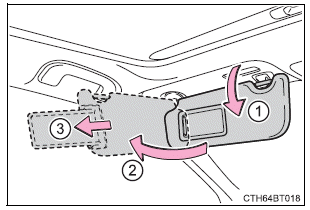

- To set the visor in the forward position, flip it down.
- To set the visor in the side position, flip down, unhook, and swing it to the side.
- To use the side extender, place the visor in the side position, then slide it backward.

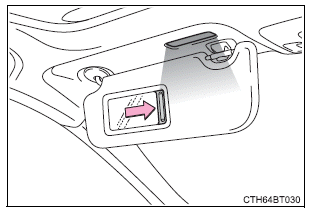

Vanity mirrors
Slide the cover to open.
Vehicles with vanity lights: The light turns on when the cover is opened.
Vehicles with vanity lights: If the vanity lights remain on for 20 minutes while the engine is off, the lights will turn off automatically.
Power outlet
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
â– The power outlet can be used when
Vehicles without a smart key s ...
