Toyota Camry Owner's Manual (2023): Suggestion function

Displays suggestions to the driver in the following situations. To select a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.

■ Suggestion to turn off the headlights

If the headlights are left on for a certain amount of time after the engine switch has been turned off, if the headlight switch is in the "AUTO" position, a suggestion message will be displayed asking if you wish to turn the headlights off. To turn the headlights off, select "Yes".

If a front door is opened after the engine switch is turned off, this suggestion message will not be displayed.

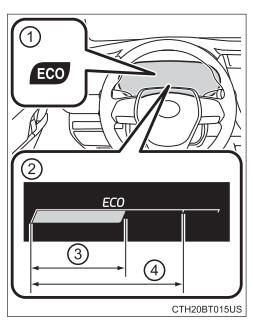

■Eco Driving Indicator

  1. Eco Driving Indicator Light
    During Eco-friendly acceleration (Eco driving), the Eco Driving Indicator Light will turn on. When the acceleration exceeds the Zone of Eco driving, or when the vehicle is stopped, the light turns off.
  2. Eco Driving Indicator Zone Display
    Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration.
  3. Eco driving ratio based on acceleration
    If the acceleration exceeds the Zone of Eco driving, the right side of the Eco Driving Indicator Zone Display will illuminate.
  4. Zone of Eco driving

Multi-information display (7-inch display)

Eco Driving Indicator will not operate under the following conditions:

■Suspension of the settings display

■Tire pressure

■Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to use the display.

■Customization

Some functions can be customized.

WARNING

■Caution for use while driving

■The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information display monitor may respond slowly, and display changes may be delayed.

For example, there is a lag between the driver's shifting and the new gear number appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine braking and possibly an accident resulting in death or injury.

■Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.

NOTICE

■While setting up the display

To prevent battery discharge, ensure that the engine is running while setting up the display features.

Settings display
◆ Changing settings Use the meter control switches on the steering wheel to change settings. 1. Press or to select . 2. Operate the switches to select a desired item. 3. Press or press and ...
