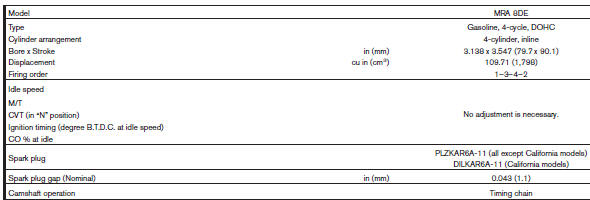

Engine
This spark ignition system complies with the Canadian standard ICES-002.

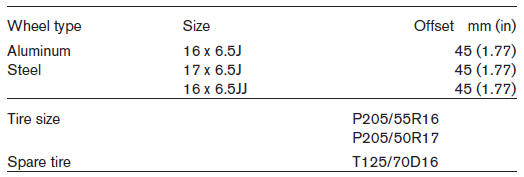

Wheels and tires

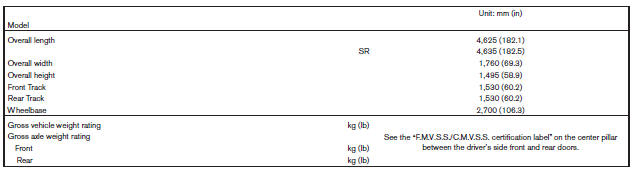

Dimensions and weights
Thermostat and thermostat housing
Exploded View
Thermostat housing
Gasket
Rubber ring
Thermostat
Water inlet
Clamp
Radiator hose (upper)
To radiator
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns
could occur from high-pressure
engine coolant escaping from the radiator. ...
Precaution for work
When removing or disassembling each component, be careful not to damage
or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
When removing (disengaging) components with a screwdriver or similar
tool, be sure to wrap the component
with a ...
Electric oil pump
Exploded View
Transaxle assembly
Electric oil pump sub harness
O-ring
Electric oil pump and motor assembly
CVT fluid
Removal and Installation
REMOVAL
Remove neighboring parts of electric oil pump.
Remove electric oil pump sub harness.
Remove electric oil pump and motor a ...
