Toyota Camry: Settings display

◆ Changing settings

Use the meter control switches on the steering wheel to change settings.

1. Press or to select .

2. Operate the switches to select a desired item.

3. Press or press and hold .

The available settings will differ depending on if is pressed or pressed and held. Follow the instructions on the display.

◆ Setting items

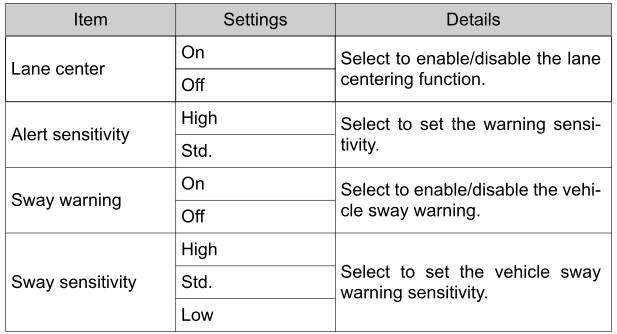

LTA (Lane Tracing Assist)

Press and hold to change the settings of the following items:

Multi-information display (7-inch display)

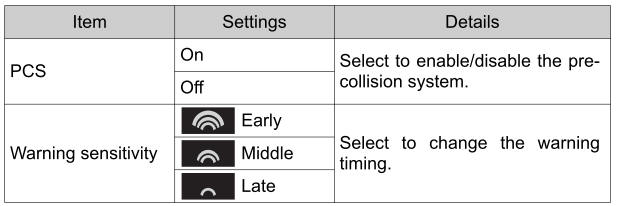

PCS (Pre-Collision System)

Press and hold to change the settings of the following items:

Multi-information display (7-inch display)

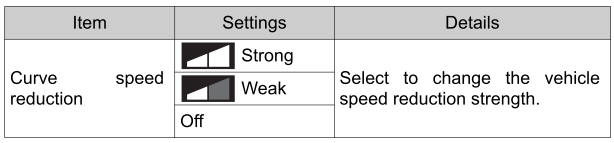

DRCC (Dynamic Radar Cruise Control)

Press and hold to change the settings of the following item:

Multi-information display (7-inch display)

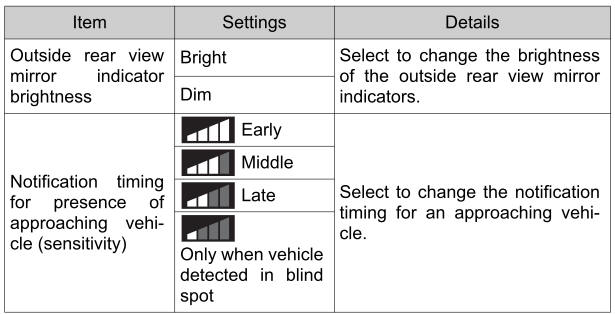

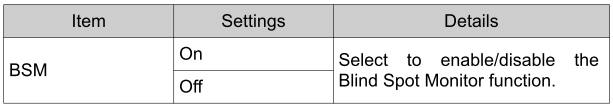

BSM (Blind Spot Monitor) (if equipped)

Press to enable/disable the Blind Spot Monitor function.

Multi-information display (7-inch display)

Press and hold to change the settings of the following item:

Multi-information display (7-inch display)

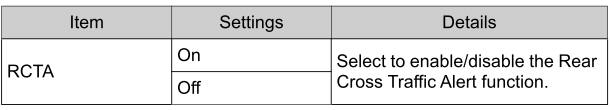

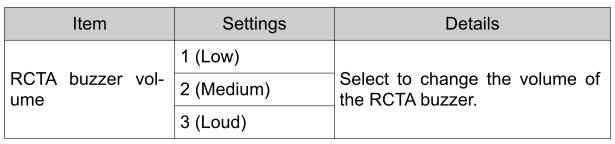

RCTA (Rear Cross Traffic Alert) (if equipped)

Press to enable/disable the Rear Cross Traffic Alert function.

Multi-information display (7-inch display)

Press and hold to change the settings of the following item:

Multi-information display (7-inch display)

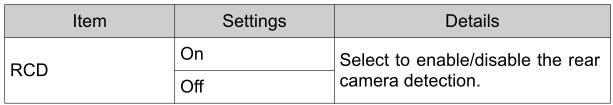

■ RCD (Rear Camera Detection) function (if equipped)

Press to enable/disable the rear camera detection function.

Multi-information display (7-inch display)

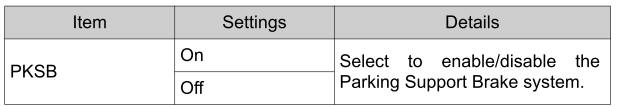

PKSB (Parking Support Brake) (if equipped)

Press to enable/disable the Parking Support Brake.

Multi-information display (7-inch display)

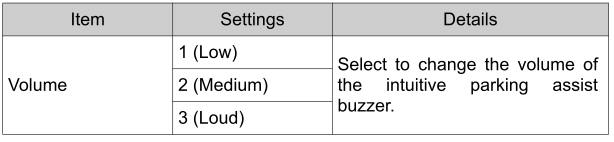

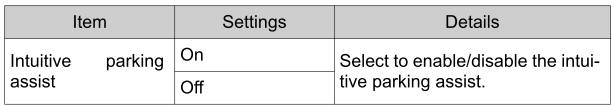

Intuitive parking assist (if equipped)

Press to enable/disable the Intuitive parking assist.

Multi-information display (7-inch display)

Press and hold to change the settings of the following item:

Multi-information display (7-inch display)

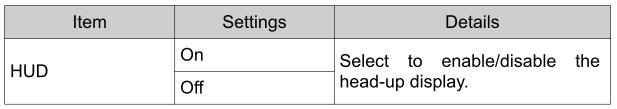

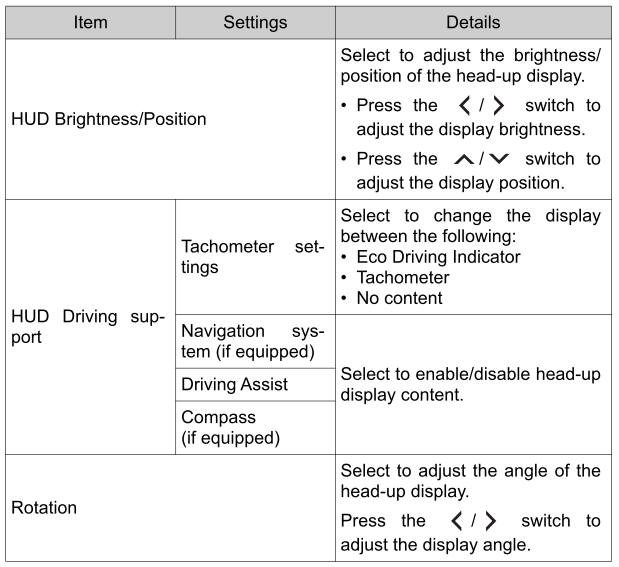

HUD (Head-up display) (if equipped)

Press to enable/disable the head-up display.

Multi-information display (7-inch display)

Press and hold to change the settings of the following items:

Multi-information display (7-inch display)

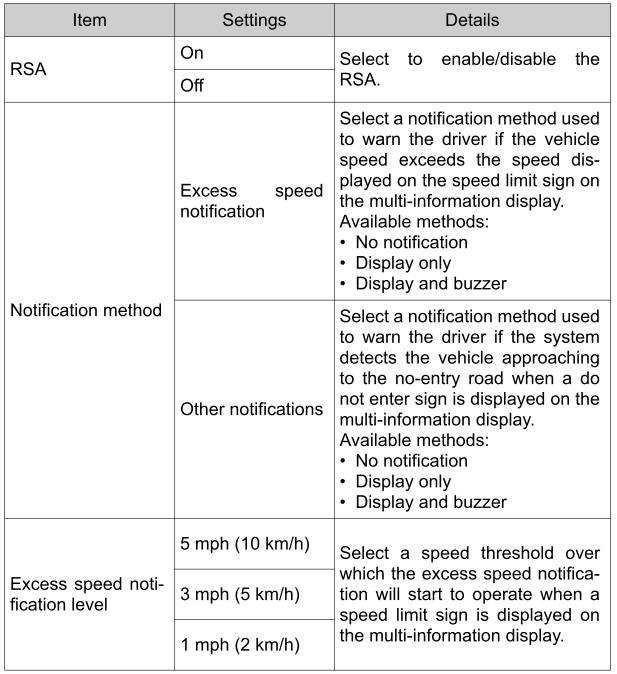

RSA (Road Sign Assist) (if equipped)

Press and hold to change the settings of the following items:

Multi-information display (7-inch display)

Vehicle settings

Press and hold to change the settings of the following items:

Multi-information display (7-inch display)

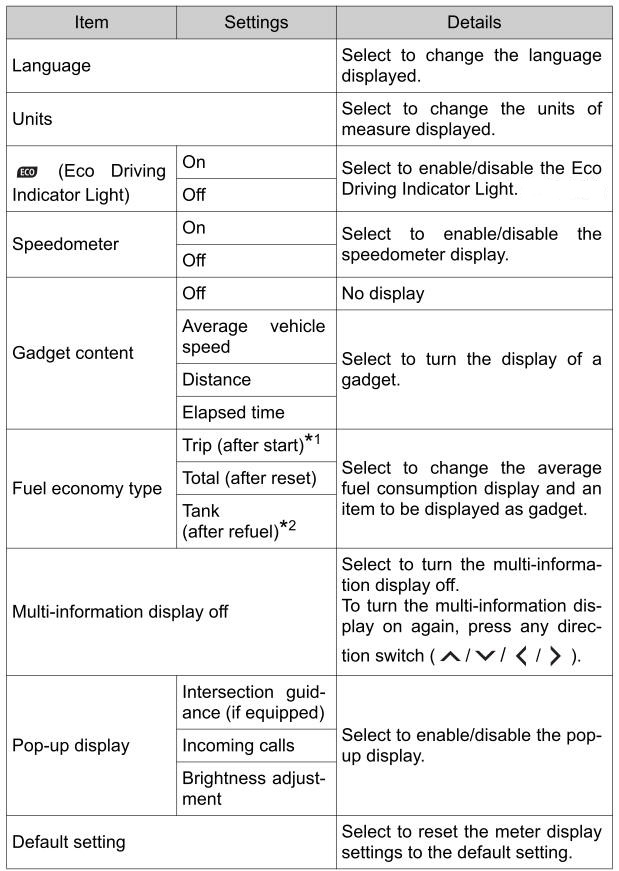

Meter settings

Press and hold to change the settings of the following items:

Multi-information display (7-inch display)

*1: Selecting this item will only change the gadget.
*2: Selecting this item will turn the display of the gadget off.

Odometer/trip meter

■ Odometer

Displays the total distance the vehicle has been driven.

■ Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.

To reset, display the desired trip meter and press and hold the "ODO/ TRIP" switch.
