Toyota Camry Owner's Manual (2023): Settings display
â—† Changing settings
Use the meter control switches on the steering wheel to change settings.
1. Press
or
to select
.
2. Operate the switches to select a desired item.
3. Change the setting by referring to the message displayed on the screen.
â—† Setting items
â–

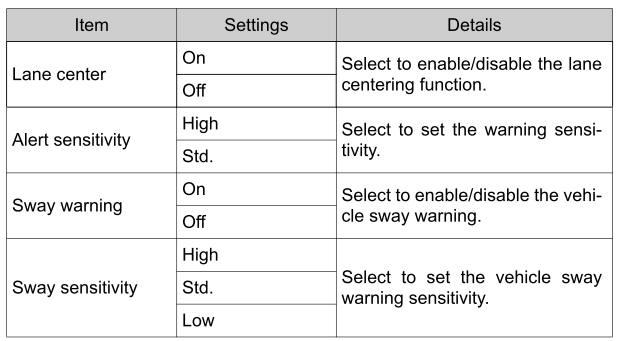

LTA (Lane Tracing Assist)
The following LTA system settings can be changed:
â–

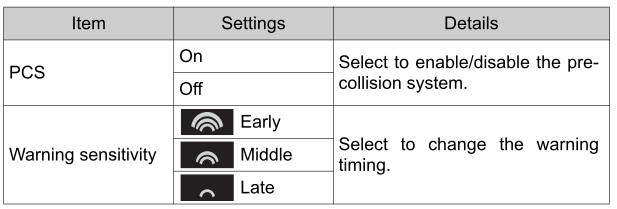

PCS (Pre-Collision System)
The following pre-collision system settings can be changed:
â–

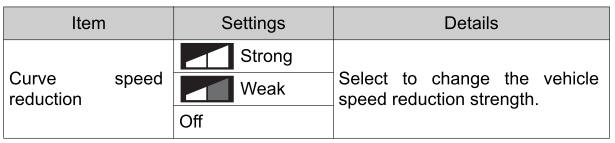

DRCC (Dynamic Radar Cruise
Control)
â–

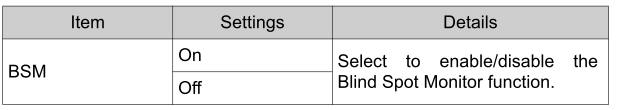

BSM (Blind Spot Monitor)
function (if equipped)

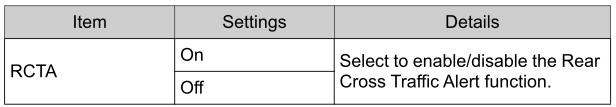

â– RCTA (Rear Cross Traffic Alert) function (if equipped)

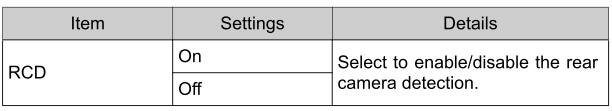

â– RCD (Rear Camera Detection) function (if equipped)
â–
RSA (Road Sign Assist) (if
equipped)

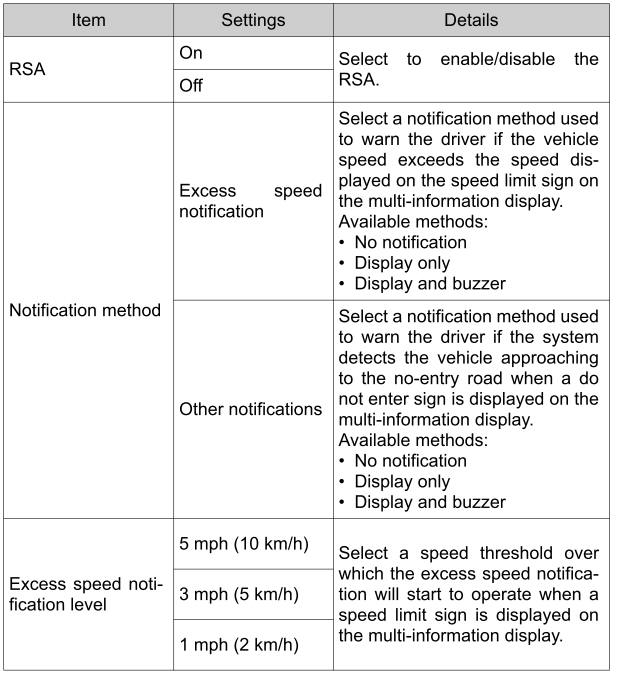

The following RSA settings can be changed:

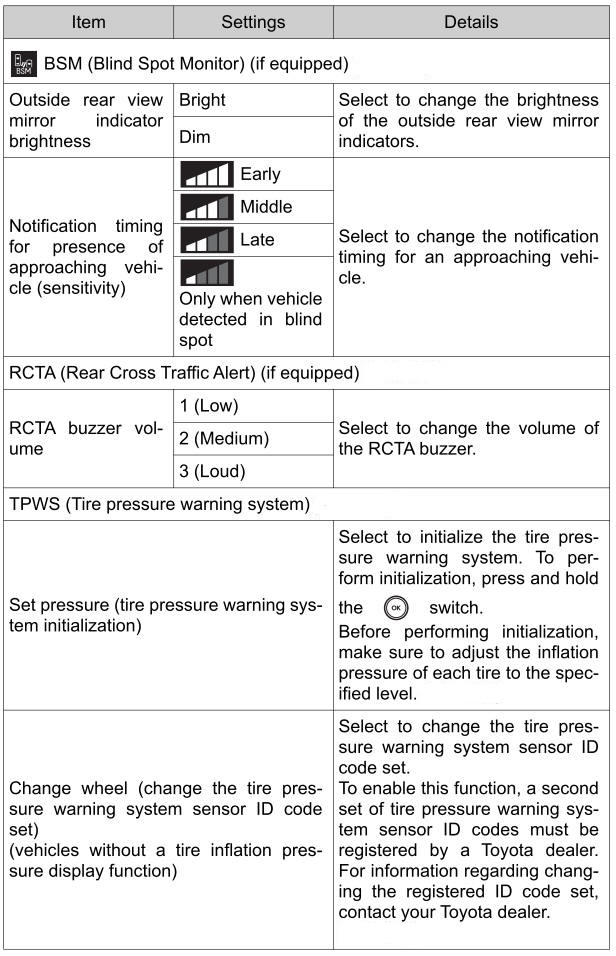

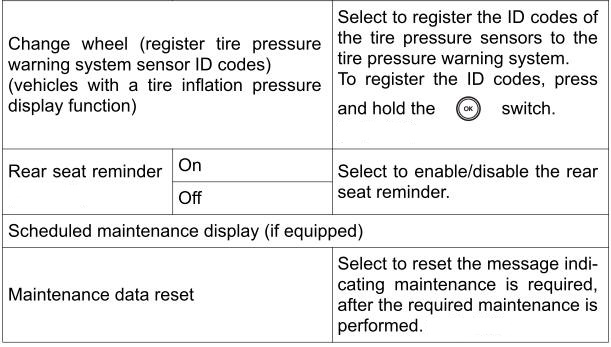

â– Vehicle settings

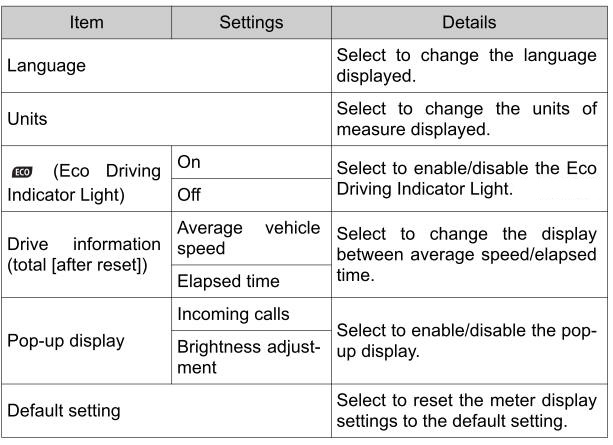

â– Meter settings
Odometer/trip meter
â– Odometer
Displays the total distance the vehicle has been driven.
â– Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.
To reset, display the desired trip meter and press and hold the "ODO/ TRIP" switch.
Drive information
â– Trip (after start)
Average fuel economy*
Displays the average fuel consumption
since engine start.
Average vehicle speed
Displays the average vehicle
speed since engine start.
Elap ...
Suggestion function
Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.
The suggestion function can be turned on/off.
â– S ...
