Toyota Camry Owner's Manual (2023): RCTA function - RCTA (Rear Cross Traffic Alert)

Toyota Camry Owner's Manual (2023) / Driving / Using the driving support systems / RCTA function - RCTA (Rear Cross Traffic Alert)

The RCTA functions when your vehicle is in reverse. It can detect other vehicles approaching from the right or left rear of the vehicle. It uses radar sensors to alert the driver of the other vehicle's existence through flashing the outside rear view mirror indicators and sounding a buzzer.

Using the driving support systems

  1. Approaching vehicles
  2. Detection areas

■ RCTA icon display (if equipped)

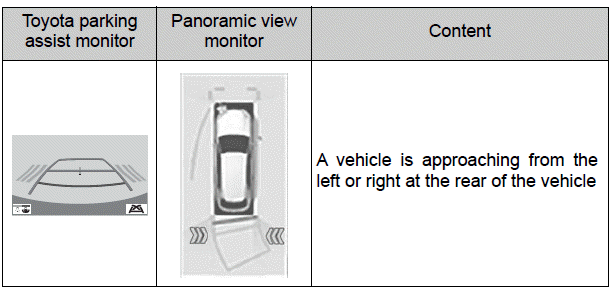

When a vehicle approaching from the right or left at the rear of the vehicle is detected, the following will be displayed on the audio system screen.

Using the driving support systems

WARNING

■Cautions regarding the use of the system

There is a limit to the degree of recognition accuracy and control performance that this system can provide, do not overly rely on this system. The driver is always responsible for paying attention to the vehicle's surroundings and driving safely.

RCTA function detection areas

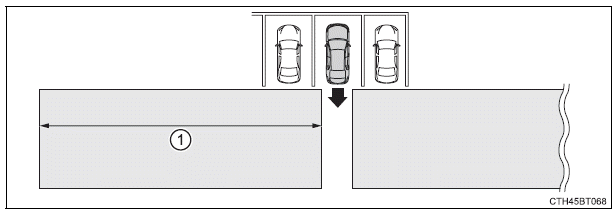

The areas that vehicles can be detected in are outlined below.

Using the driving support systems

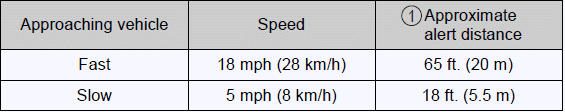

To give the driver a more consistent time to react, the buzzer can alert for faster vehicles from farther away.

Example:

Using the driving support systems

■The RCTA function is operational when

■Conditions under which the system will not detect a vehicle

The RCTA function is not designed to detect the following types of vehicles and/or objects:

Using the driving support systems

*: Depending on the conditions, detection of a vehicle and/or object may occur.

■Situations in which the system may not operate properly

The RCTA function may not detect vehicles correctly in the following situations:

Using the driving support systems

Using the driving support systems

Using the driving support systems

Using the driving support systems

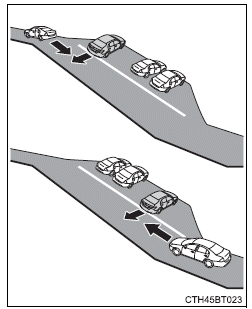

■Situations in which the system may operate even if there is no possibility of a collision

Instances of the RCTA function unnecessary detecting a vehicle and/or object may increase in the following situations:

Using the driving support systems

Using the driving support systems

Using the driving support systems

Using the driving support systems
