Please use as a power supply for electronic goods that use less than 12 VDC/10 A (power consumption of 120 W).

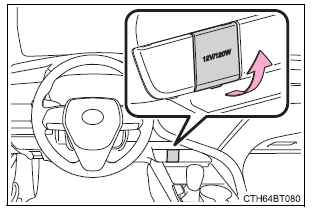

Open the lid.
â– The power outlet can be used when
Vehicles without a smart key system: The engine switch is in the "ACC" or "ON" position.
Vehicles with a smart key system: The engine switch is in ACCESSORY or IGNITION ON mode.
â– When turning the engine switch off
Disconnect electrical devices with charging functions, such as mobile battery packs.
If such devices are left connected, the engine switch may not be turned off normally.
NOTICE
Foreign objects or liquids that enter the power outlet may cause a short circuit.
