Toyota Camry Owner's Manual (2023): Positioning a floor jack
When using a floor jack, follow the instructions in the manual provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.

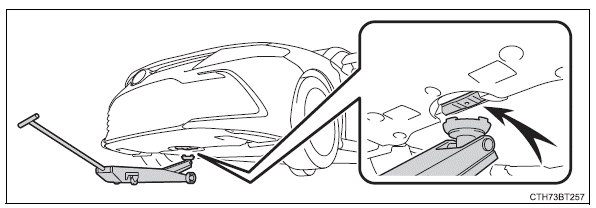

â—† Front
â—† Rear

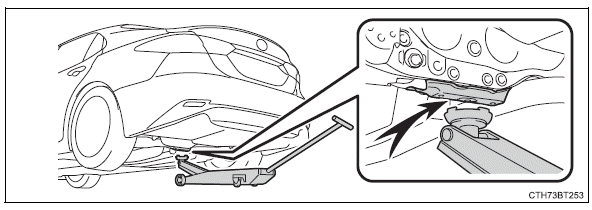

2WD models

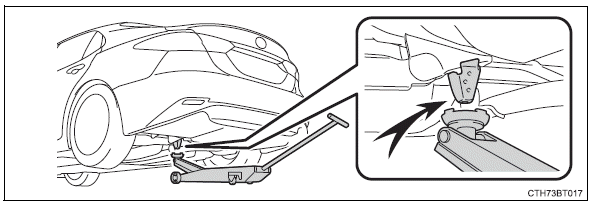

AWD models
Hood
Release the lock from the inside of the vehicle to open the hood.
1. Pull the hood lock release lever.
The hood will pop up slightly.
2. Pull up the auxiliary catch lever
and lift the hood.
...
Engine compartment
2.5 L 4-cylinder (A25A-FKS) engine
Fuse boxes (if equipped)
Engine oil filler cap
Engine oil level dipstick
Brake fluid reservoir
Battery
Radiator
Electric cooling fan
Condenser
...
