Toyota Camry Owner's Manual (2023): Pictorial index

Toyota Camry Owner's Manual (2023) / Pictorial index

Instrument panel

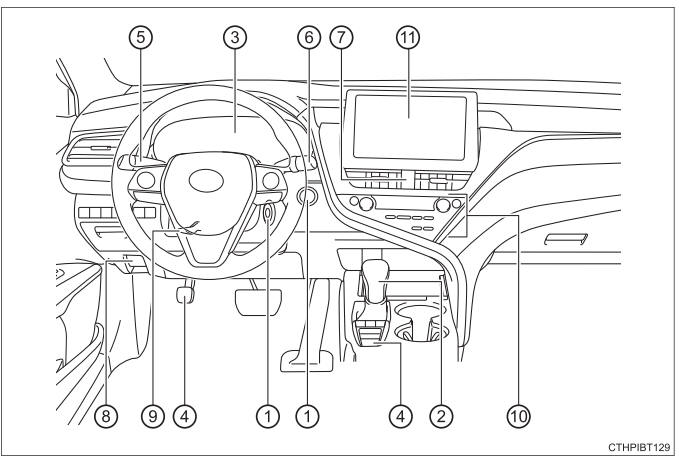

Instrument panel

  1. Engine switch
    Starting the engine/changing the positions or modes
     Emergency stop of the engine
     When the engine will not start
  2. Shift lever
    Changing the shift position
    Precautions for towing
     When the shift lever does not move
  3. Meters
    Reading the meters/adjusting the instrument panel lights
    Warning lights/indicator lights
     When a warning light comes on
     Multi-information display
    Display
     When the warning messages are displayed
  4. Parking brake
    Applying/releasing
    Precautions for winter season
    Warning light/warning buzzer/ warning message
  5. Turn signal lever
    Headlight switch
    Headlights/side marker lights/parking lights/tail lights/ license plate lights/daytime running lights
  6. Windshield wiper and washer switch
    Usage
     Adding washer fluid
  7. Emergency flasher switch
  8. Hood lock release lever
  9. Tilt and telescopic steering lock release lever
  10. Air conditioning system
    Usage
     Rear window defogger
  11. Audio* 1, 2
    Audio Plus* 1, 2
    Premium Audio* 1, 2
    Clock* 2

* 1: If equipped
* 2: Refer to "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

Switches

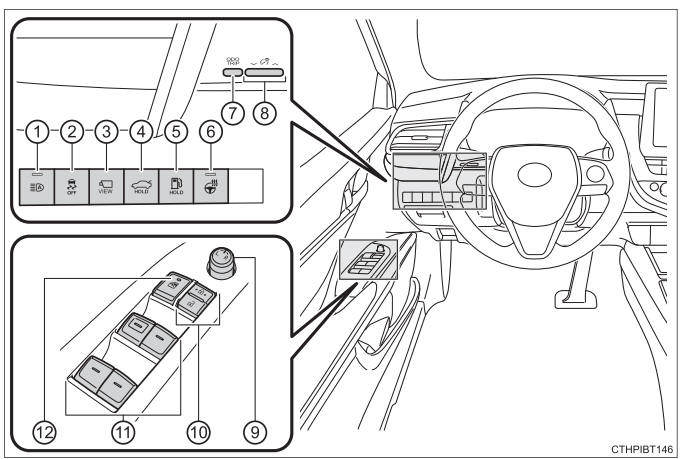

Switches

  1. Automatic High Beam switch
  2. VSC OFF switch
  3. Camera switch* 1, 2
  4. Trunk opener switch
  5. Fuel filler door opener switch
  6. Heated steering wheel switch* 1
  7. "ODO/TRIP" switch
  8. Instrument panel light control switch
  9. Outside rear view mirror switch
  10. Door lock switches
  11. Power window switches
  12. Window lock switch

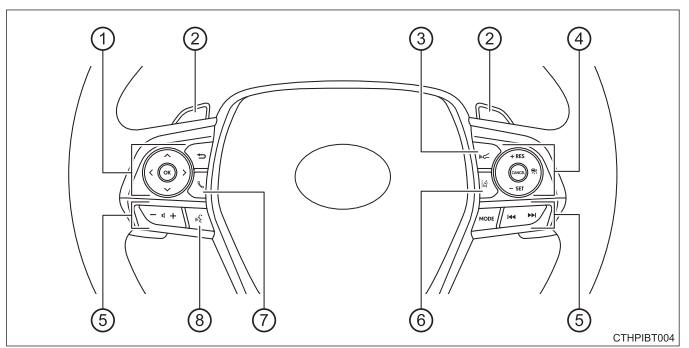

Switches

  1. Meter control switches
  2. Paddle shift switches* 1
  3. Vehicle-to-vehicle distance switch* 1
  4. Cruise control switches
    Dynamic radar cruise control with full-speed range* 1
     Dynamic radar cruise control* 1
  5. Audio remote control switches* 2
  6. LTA (Lane Tracing Assist) switch
  7. Phone switch* 2
  8. Talk switch* 2

* 1: If equipped
* 2: Refer to "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

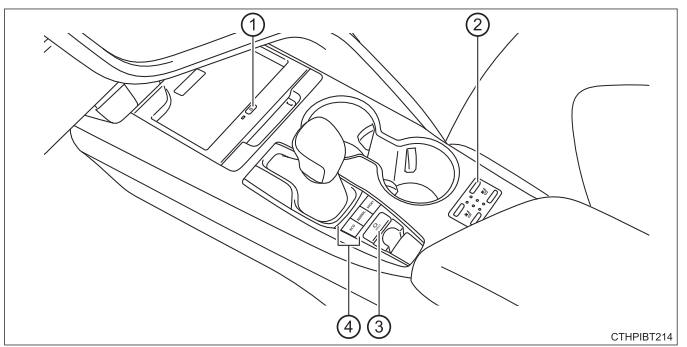

Switches

  1. Wireless charger switch*
  2. Seat heater switches*
    Seat ventilator switches*
  3. Brake hold switch*
  4. Driving mode select switches*

* : If equipped

Interior

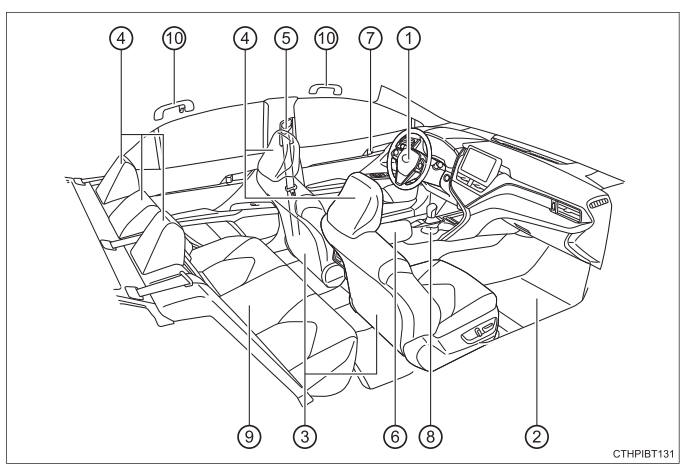

Interior

  1. SRS airbags
  2. Floor mats
  3. Front seats
  4. Head restraints
  5. Seat belts
  6. Console box
  7. Inside lock buttons
  8. Cup holders
  9. Rear seats
  10. Assist grips

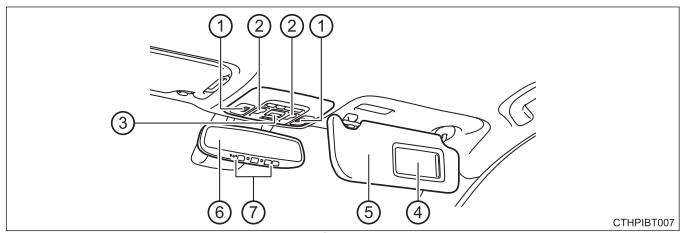

Interior

  1. Interior lights/personal lights* 1
  2. Moon roof switches* 2
    Panoramic moon roof switches* 2
  3. "SOS" button* 2
  4. Vanity mirrors
  5. Sun visors
  6. Inside rear view mirror
  7. Garage door opener switches* 2

* 1: The illustration shows the front, but they may also be equipped in the rear.
* 2: If equipped
