Toyota Camry Owner's Manual (2023): Maintenance data  (fuel, oil level, etc.)

Toyota Camry Owner's Manual (2023) / Vehicle specifications / Specifications / Maintenance data  (fuel, oil level, etc.)

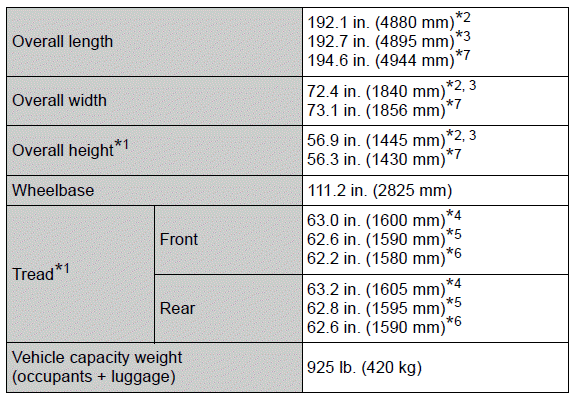

Dimensions and weights (2WD models)

Specifications

*1: Unladen vehicles
*2: For LE or XLE grade models
*3: For SE or XSE grade models
*4: 205/65R16 tires
*5: 215/55R17 tires and TRD models with 235/40R19 tires
*6: 235/45R18, and SE or XSE grade models with 235/40R19 tires
*7: For TRD models

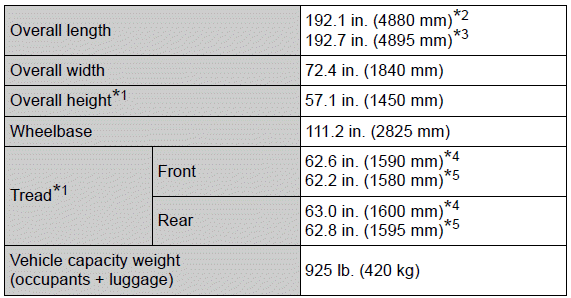

Dimensions and weights (AWD models)

Specifications

*1: Unladen vehicles
*2: For LE or XLE grade models
*3: For SE or XSE grade models
*4: 215/55R17 tires
*5: 235/45R18 and 235/40R19 tires

Seating capacity

Specifications

Vehicle identification

■ Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.

This number is stamped on the top left of the instrument panel.

Specifications

This number is also on the Certification Label.

Specifications

■ Engine number

The engine number is stamped on the engine block as shown.

2.5 L 4-cylinder (A25A-FKS) engine

Specifications

3.5 L V6 (2GR-FKS) engine

Specifications

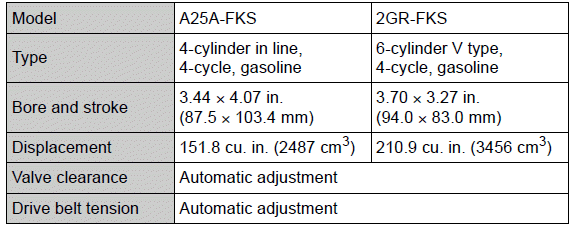

Engine

Specifications

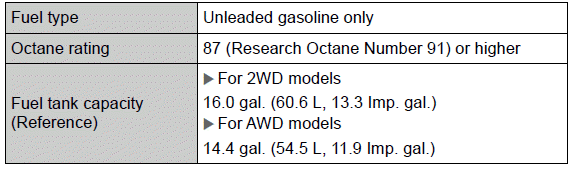

Fuel

Specifications

Lubrication system

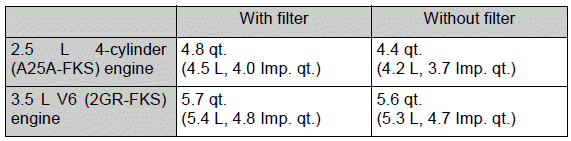

■ Oil capacity (Drain and refill [Reference*] )

Specifications

*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level on the dipstick.

■ Engine oil selection

2.5 L 4-cylinder (A25A-FKS) engine

"Toyota Genuine Motor Oil" is used in your Toyota vehicle. Use Toyota approved "Toyota Genuine Motor Oil" or equivalent to satisfy the following grade and viscosity.

Oil grade: ILSAC GF-6B multigrade engine oil

Recommended viscosity: SAE 0W-16

SAE 0W-16 is the best choice for good fuel economy and good starting in cold weather.

If SAE 0W-16 is not available, SAE 0W-20 oil may be used. However, it must be replaced with SAE 0W- 16 at the next oil change.

Specifications

Oil viscosity (0W-16 is explained here as an example):

How to read oil container label:

API registered mark is added to some oil containers to help you select the oil you should use.

Specifications

3.5 L V6 (2GR-FKS) engine

"Toyota Genuine Motor Oil" is used in your Toyota vehicle. Use Toyota approved "Toyota Genuine Motor Oil" or equivalent to satisfy the following grade and viscosity.

Oil grade: ILSAC GF-6A multigrade engine oil

Recommended viscosity: SAE 0W-20

SAE 0W-20 is the best choice for good fuel economy and good starting in cold weather.

If SAE 0W-20 is not available, SAE 5W-20 oil may be used. However, it must be replaced with SAE 0W- 20 at the next oil change.

Specifications

Oil viscosity (0W-20 is explained here as an example):

How to read oil container label:

The International Lubricant Specification Advisory Committee (ILSAC) Certification Mark is added to some oil containers to help you select the oil you should use.

Specifications

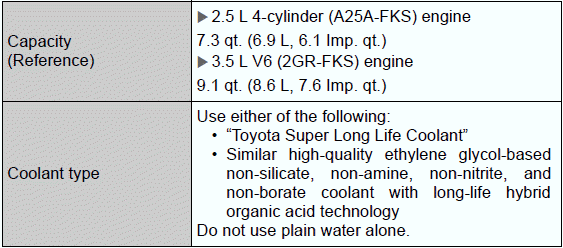

Cooling system

Specifications

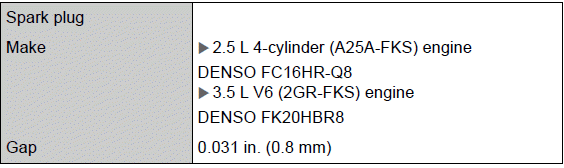

Ignition system

Specifications

NOTICE

■Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

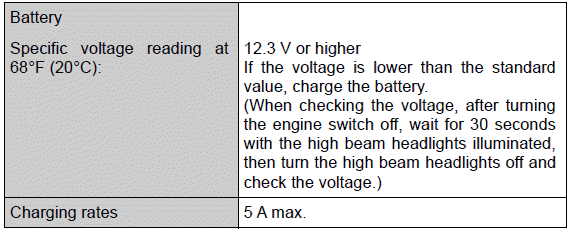

Electrical system

Specifications

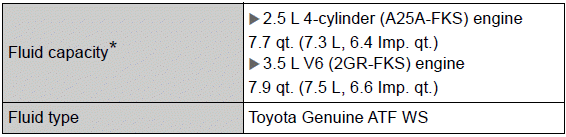

Automatic transaxle

Specifications

*: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

NOTICE

■Transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibration, or damage the transmission of your vehicle.

Transfer (AWD models)

Specifications

Your Toyota vehicle is filled with "Toyota Genuine Differential Gear Oil" at the factory.

Use Toyota approved "Toyota Genuine Differential Gear Oil" or an equivalent of matching quality to satisfy the above specification. Please contact your Toyota dealer for further details.

Rear differential (AWD models)

Specifications

Your Toyota vehicle is filled with "Toyota Genuine Differential Gear Oil" at the factory.

Use Toyota approved "Toyota Genuine Differential Gear Oil" or an equivalent of matching quality to satisfy the above specification. Please contact your Toyota dealer for further details.

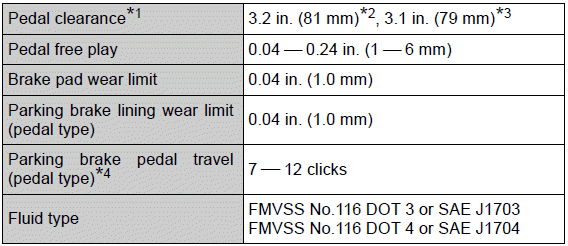

Brakes

Specifications

*1: Minimum pedal clearance when depressed with a force of 67 lbf (300 N, 31 kgf) while the engine is running.
*2: Except for TRD models
*3: For TRD models
*4: Parking brake pedal travel when depressed with a force of 67 lbf (300 N, 31 kgf).

Steering

Specifications

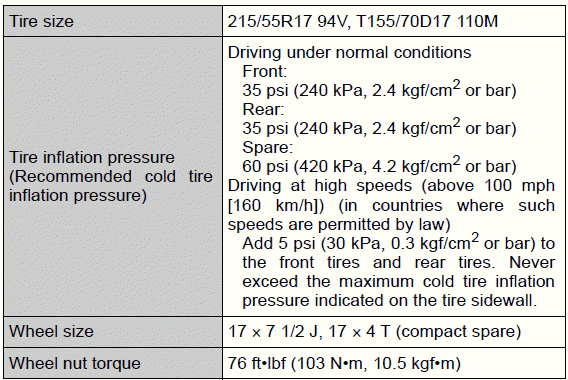

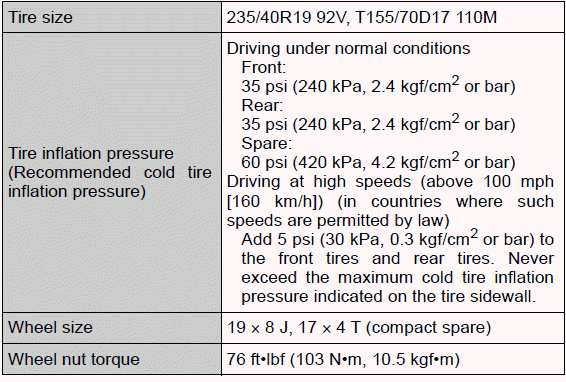

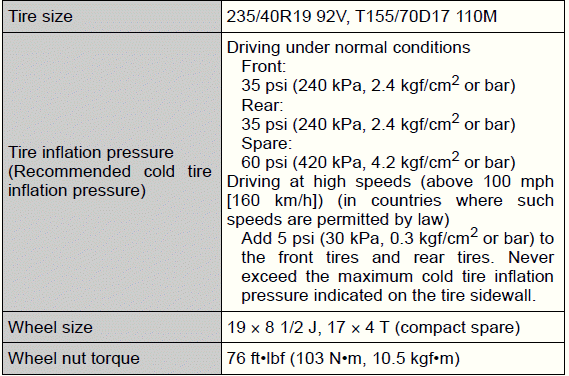

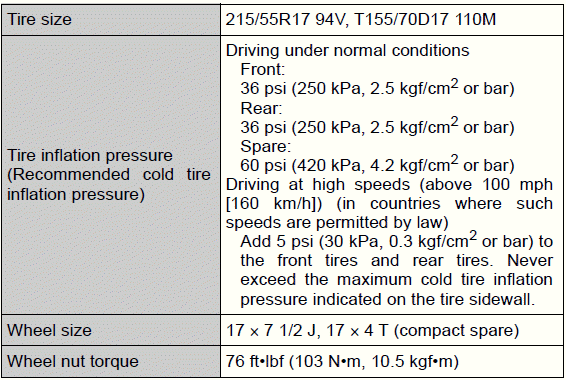

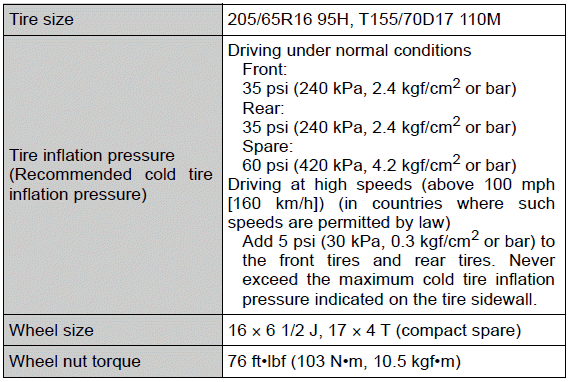

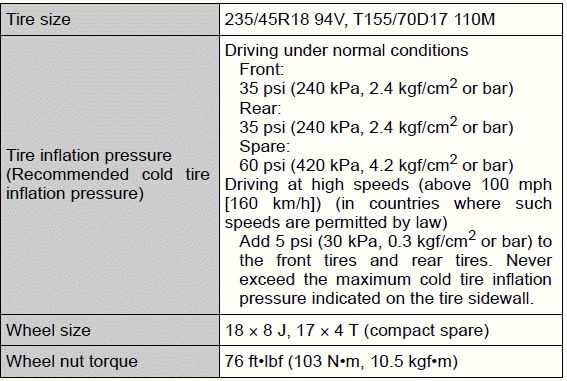

Tires and wheels (2WD models)

Type A

Specifications

Type B

Specifications

Type C

Specifications

Type D

Specifications

Type E

Specifications

Type F

Specifications

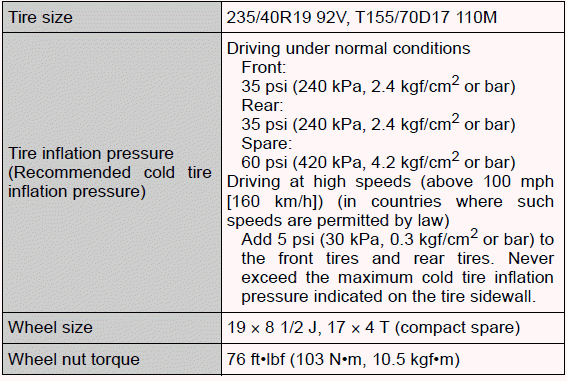

Tires and wheels (AWD models)

Type A

Specifications

Type B

Specifications

Type C

Specifications

Type D

Specifications

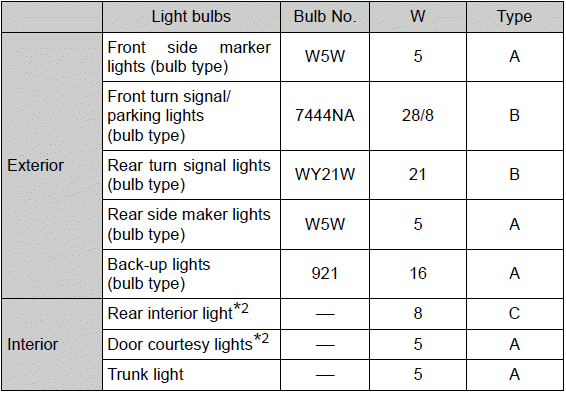

Light bulbs*1

Specifications

  1. Wedge base bulbs (clear)
  2. Wedge base bulbs (amber)
  3. Double end bulbs

*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped

Specifications
...

Fuel information
You must only use unleaded gasoline. Select octane rating 87 (Research Octane Number 91) or higher. Use of unleaded gasoline with an octane rating lower than 87 may result in engine knocking. P ...
