Inspection

Check the brake pedal height with the floor trim removed.

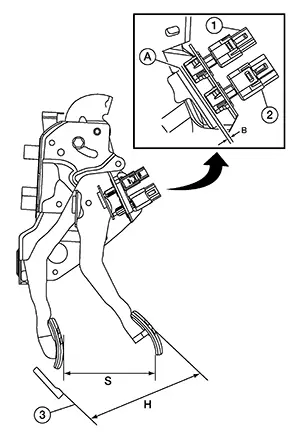

Check the brake pedal height (H) between the dash lower panel (3) and the brake pedal upper surface.


Brake pedal height (H) from dash lower panel (3)		Refer to Brake Pedal.
Clearance (B) between brake pedal bracket (A), stop lamp switch (2) and brake pedal position switch (1) contact ends		Refer to Brake Pedal.
Brake pedal full stroke (S)		Refer to Brake Pedal.

If the brake pedal height is not the standard, inspect the brake pedal for damage. If the brake pedal is damaged, replace the brake pedal. Refer to Removal and Installation.

If the brake pedal height is not the standard and the brake pedal is not damaged, perform the following steps to inspect the brake booster: Remove the brake booster. Refer to Removal and installation. Measure the input rod (A) length (B).

Input rod (A) length (B)

: Refer to Brake Booster.

If the input rod length is not the standard, replace the brake booster . Refer to Removal and installation. Note:

The input rod length is not adjustable.
