Toyota Camry Owner's Manual (2023): Heated steering wheel/seat heaters/seat ventilators

Heated steering wheel and seat heaters heat the side grips of the steering wheel and seats, respectively. Seat ventilators maintain good ventilation by pulling air through the seat upholstery.

WARNING

■To prevent minor burn injuries

Care should be taken to prevent injury if anyone in the following categories comes in contact with the steering wheel and seats when the heater is on:

■To prevent damage to the seat heaters

Observe the following precautions to prevent the minor burns or overheating

NOTICE

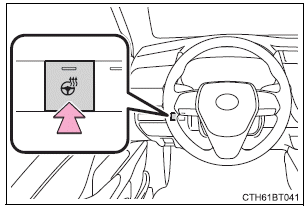

Heated steering wheel

Turns the heated steering wheel on/off

The indicator light comes on when the heated steering wheel is operating.

Using the air conditioning system and defogger

■Operation condition

Vehicles without a smart key system: The heated steering wheel can be used when the engine switch is in the "ON" position.

Vehicles with a smart key system: The heated steering wheel can be used when the engine switch is in IGNITION ON mode.

Seat heaters

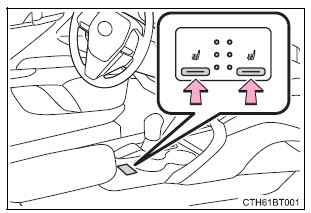

Without seat ventilators

Using the air conditioning system and defogger

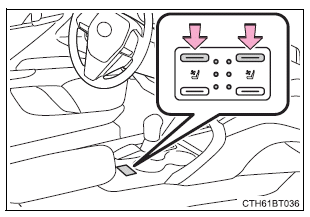

With seat ventilators

Using the air conditioning system and defogger

Each time the switch is pressed, the operation condition changes as follows.

Hi (3 segments lit) Mid (2 segments lit) Lo (1 segment lit) Off

The level indicator (amber) lights up during operation.

■Operation condition

Vehicles without a smart key system: The seat heaters can be used when the engine switch is in the "ON" position.

Vehicles with a smart key system: The seat heaters can be used when the engine switch is in IGNITION ON mode.

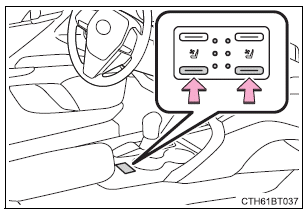

Seat ventilators

Each time the switch is pressed, the operation condition changes as follows.

Hi (3 segments lit) Mid (2 segments lit) Lo (1 segment lit) Off

The level indicator (green) lights up during operation.

Using the air conditioning system and defogger

■The seat ventilators can be used when

The engine switch is in IGNITION ON mode.

■Air conditioning system-linked control mode

When a seat ventilator is set to Hi, the fan speed of the seat ventilator may increase according to the fan speed of the air conditioning system
