Toyota Camry: Gauges and meters

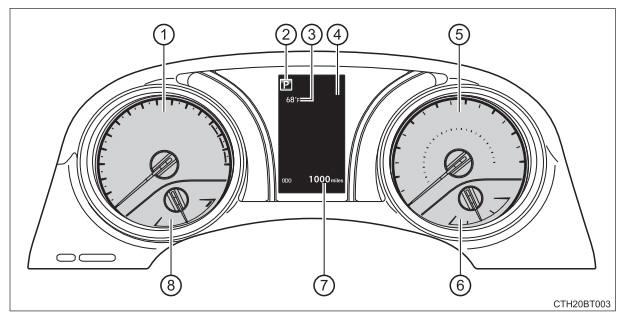

4.2-inch display

Gauges and meters

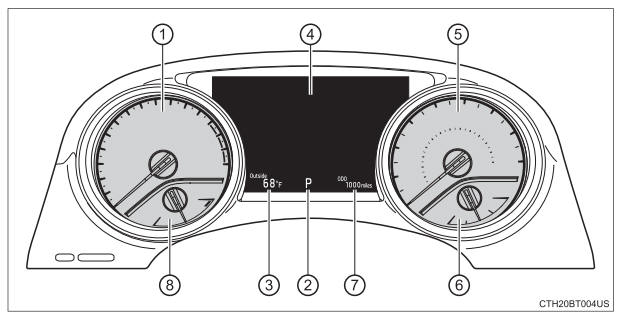

7-inch display

Gauges and meters

  1. Tachometer
    Displays the engine speed in revolutions per minute
  2. Shift position
  3. Outside temperature
    Displays the outside temperature within the range of -40ºF (-40ºC) to 122ºF (50ºC). Low outside temperature indicator comes on when the ambient temperature is 37ºF (3ºC) or lower.
  4. Multi-information display
    Presents the driver with a variety of vehicle data
    Displays warning messages in case of a malfunction
  5. Speedometer
  6. Fuel gauge
    Displays the fuel level. In the following situations, the actual fuel level may not be displayed correctly:
    • After refueling only a small amount (approximately 5 L or less)
    • When stopped on a hill or other slope
    • When driving on a slope or around a curve
  7. Odometer and trip meter
  8. Engine coolant temperature gauge
    Displays the engine coolant temperature

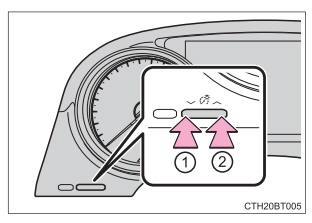

Instrument panel light control

The brightness of the instrument panel lights can be adjusted.

  1. Darker
  2. Brighter

Gauges and meters

  • The brightness of the instrument panel lights can be adjusted individually for day mode and night mode*.
  • If the brightness is adjusted when the surroundings are bright and the tail lights are on (day mode brightness adjustment), the brightness level of night mode will be adjusted at the same time.

*: Day mode and night mode

■The meters and display illuminate when

Vehicles without a smart key system

The engine switch is in the "ON" position.

Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

■Brightness of the meters (day mode and night mode)

  • The brightness of the meters is changed between day mode and night mode.
    • Day mode: When the tail lights are off or when the tail lights are on but the surrounding area is bright
    • Night mode: When the tail lights are on and the surrounding area is dark
  • When in night mode, the brightness will be reduced slightly unless the meters are set to the maximum brightness level.

■Outside temperature display

In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change:

  • When stopped, or driving at low speeds (less than 16 mph [25 km/h] )
  • When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
  • When "" or "E" is displayed, the system may be malfunctioning.

    Take your vehicle to your Toyota dealer.

■Fuel gauge and driving range display

The fuel gauge and driving range display are linked. If the fuel gauge and driving range display do not update after refueling a small amount, they can be updated by performing the following procedure:

1. Stop the vehicle on a level surface.

Wait until the fuel in the fuel tank stabilizes.

2. Press the ODO/TRIP switch to change the odometer and trip meter display to the odometer.

3. Turn the engine switch off.

4. Vehicles without a smart key system: While pressing and holding the ODO/TRIP switch, turn the engine switch to the "ON" position.

Vehicles with a smart key system: While pressing and holding the ODO/TRIP switch, turn the engine switch to IGNITION ON mode.

5. Continue holding the ODO/TRIP switch for approximately 5 seconds.

Release the switch when the odometer begins blinking.

Updating will be complete when the odometer blinks for approximately 5 seconds and then returns to the normal display.

NOTICE

■To prevent damage to the engine and its components

  • Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
  • The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely.
