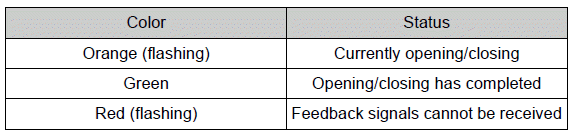

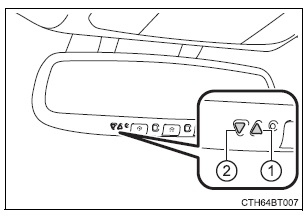

The status of the opening and closing of a garage door is shown by the indicators.
This function is only available if the garage door opener motor used is a compatible device. (To check device compatibility, refer to www.HomeLink.com.)
The indicators can operate within approximately 820 ft. (250 m) of
the garage door. However, if there are obstructions between the
garage door and the vehicle, such as houses and trees, feedback
signals from the garage door may not be received. To recall the previous
door operation status, press and release either HomeLink
buttons and
or
and
simultaneously.
The last recorded status will be displayed for 3 seconds.
Erasing the entire HomeLink memory (all three codes)

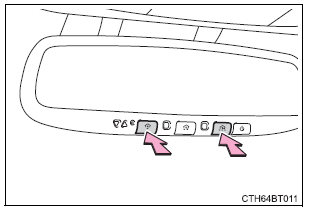

Press and hold the 2 outside buttons for 10 seconds until the HomeLink indicator light changes from continuously lit orange to rapidly flashing green.
If you sell your vehicle, be sure to erase the programs stored in the HomeLink memory.
â– Codes stored in the HomeLink memory
â– Before programming
WARNING
â– When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and objects are out of danger to prevent potential harm.
â– Conforming to federal safety standards
Do not use the HomeLink compatible transceiver with any garage door opener or device that lacks safety stop and reverse features as required by federal safety standards. This includes any garage door that cannot detect an interfering object. A door or device without these features increases the risk of death or serious injury.
â– When operating or programming HomeLink
Never allow a child to operate or play with the HomeLink buttons.
