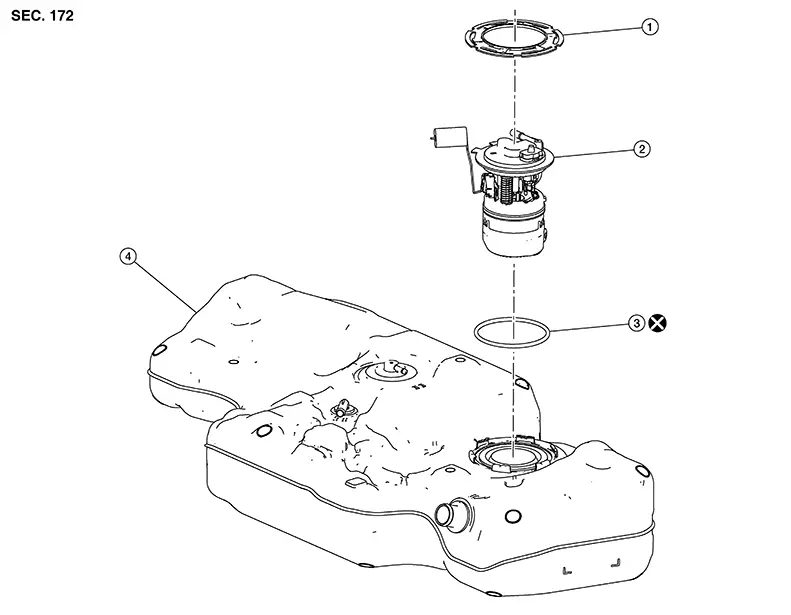

Exploded View

Exploded View

1.	Lock ring	2.	Fuel level sensor, fuel filter and fuel pump assembly	3.	O-ring
4.	Fuel tank

Removal and Installation

Removal and Installation

Warning:

Read “General Precautions” when working on the fuel system. Refer to General Precaution.

Note:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

REMOVAL

Release the fuel pressure from the fuel lines. Refer to Work Procedure.

Check the fuel level with the Nissan Sentra vehicle on a level surface. If the fuel gauge indicates more than the level as shown (1/2 full), drain the fuel from the fuel tank until the fuel gauge indicates a level at or below as shown (1/2 full).

• In case the fuel pump does not operate, use the following procedure.

Insert fuel tubing of less than 25 mm (0.98 in) diameter into the fuel filler tube through the fuel filler opening to drain fuel from the fuel filler tube. Disconnect the fuel filler hose from the fuel filler tube. Insert fuel tubing into the fuel tank through the fuel filler hose to drain fuel from the fuel tank.

• As a guide, if the fuel tank is full, drain approximately 23-1/2 (6-1/5 US gal, 5-1/10 Imp gal)to reach 1/2 full or less.

Open fuel filler lid.

Remove trunk floor carpet. Refer to Exploded View.

Open filler cap and release the pressure inside fuel tank.

Remove rear seat cushion assembly. Refer to Removal and Installation - Seat Cushion Assembly.

Remove inspection hole cover.

Disconnect harness connector, fuel feed hose, and quick connector from fuel level sensor unit, fuel filter and fuel pump assembly.

• Remove quick connector in the following procedures.

  • Pinch quick connector square-part (A) with your fingers, and pull out the quick connector (1) by hand.



  • If quick connector and tube on sender unit are stuck, push and pull several times until they move, and pull out.

CAUTION:

• Quick connector can be removed when the tabs are completely depressed. Do not twist it more than necessary.

• Do not use any tools to disconnected quick connector.

• Keep resin tube away from heat. Be especially careful when welding near the resin tube.

• Prevent acid liquid such as battery electrolyte, etc. from getting on resin tube.

• Do not bend or twist resin tube during installation and disconnection.

• To keep the connecting portion clean and to avoid damage and foreign materials, cover them completely with plastic bags (A) or something similar.



• Do not insert plug, preventing damage on O-ring in quick connector.

Remove lock ring for fuel level sensor unit, fuel filter and fuel pump assembly with Tool (A) by turning counterclockwise.

Tool number (A)	: (—) NI-45747 (shown)
	: KV101207S0 ( — )

Remove fuel level sensor unit, fuel filter and fuel pump assembly (1).

CAUTION:

• Do not bend float arm during removal.

• Do not reuse O-ring.

• Place a cloth around the fuel level sensor, fuel filter and fuel pump assembly during removal to avoid spilling fuel inside the Nissan Sentra vehicle.

• Do not cause impacts such by dropping when handling components.

INSTALLATION

Install the O-ring to the opening of the fuel tank.

CAUTION:

Do not reuse O-ring.

Insert the fuel level sensor unit, fuel filter and fuel pump assembly to the fuel tank with its matching arrow aligned with fuel tank matching arrow.

CAUTION:

Do not bend float arm during installation.

Note:

For fuel level sensor assembly matching mark is located on the fuel tank to the rear side of the Nissan Sentra vehicle.

Install lock ring with Tool (A) to tighten lock ring.

Tool number (A)	: (—) (NI-45747 ) (shown)
	: KV101207S0 ( — )

Installation of remaining components is in the reverse order of removal.

Quick Connector

Connect quick connector as follows:

Check the connection for damage or any foreign materials.

Align the connector with the tube, then insert the connector straight into the tube until a click sound is heard.

After connecting, check that the connection is secure by following method.

• Visually confirm that the two tabs are connected to the connector.

• Pull (A) the tube and the quick connector (1) to check they are securely connected.



Inspection

Inspection

INSPECTION AFTER INSTALLATION

Place ignition to “ON” position (with engine stopped), then check connections for leaks by applying fuel pressure to fuel piping.

Start engine and let it idle and check there are no fuel leaks at the fuel system connections.
