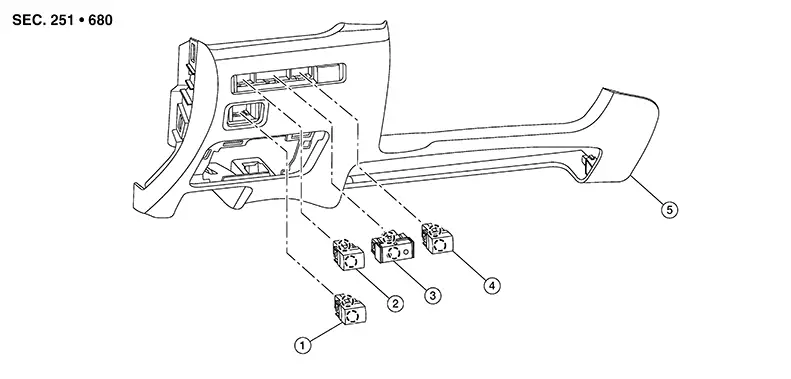

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Trunk lid request switch |
2. |
ECO mode switch |
3. |
Illumination control switch |
|
4. |
Trip reset switch |
5. |
Instrument lower panel LH |
|
Pawl |
Removal & Installation
Removal & Installation
REMOVAL
Remove the
instrument lower panel LH. Refer to Removal and Installation.
Release
pawls using suitable tool and remove the trunk lid opener switch
...
