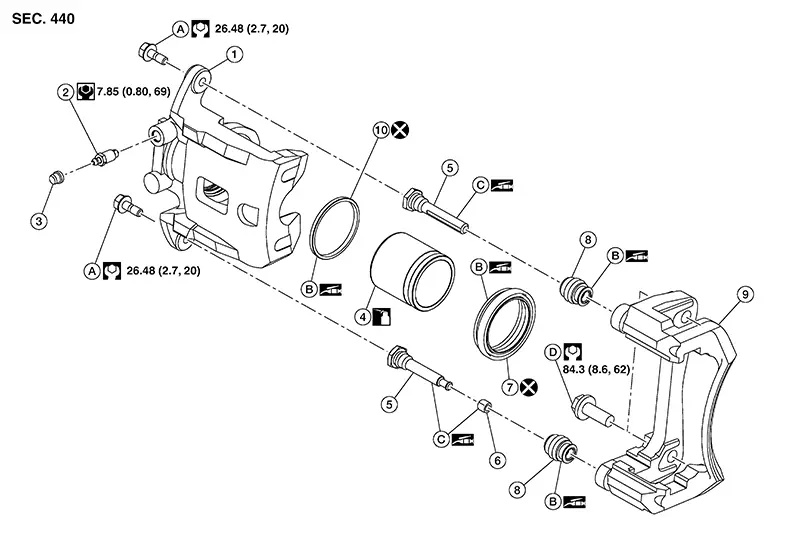

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Brake caliper body |
2. |
Bleeder valve |
3. |
Bleeder cap |
|
4. |
Piston |
5. |
Slide pin |
6. |
Bushing |
|
7. |
Piston boot |
8. |
Slide pin boot |
9. |
Torque member |
|
10. |
Piston seal |
A. |
Slide pin bolt |
B. |
Rubber grease |
|
C. |
Niglube RX-2 |
D. |
Torque member bolt |
|
Brake fluid |
Removal and Installation
Removal and Installation
Warning:
Clean dust on the brake caliper and the brake
pads using a vacuum dust collector to minimize the hazards of
airborne particles or other material. ...
