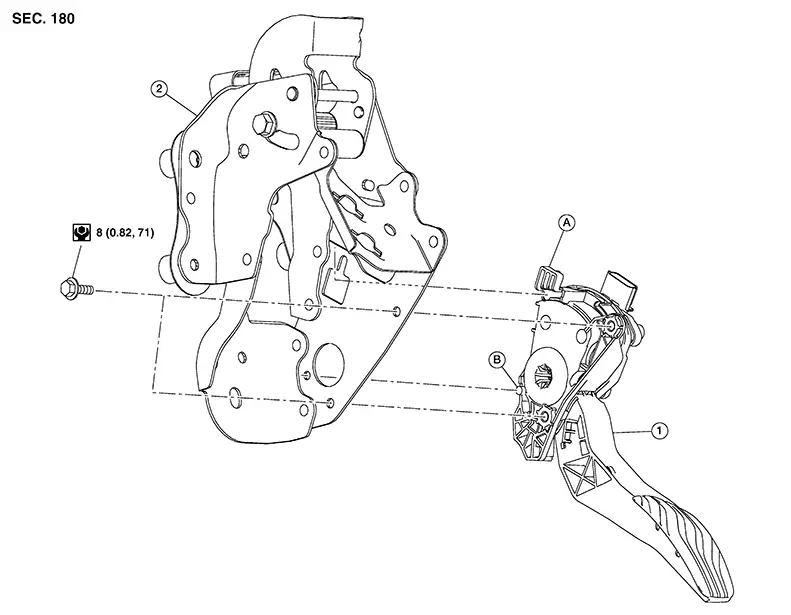

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Accelerator pedal assembly |
2. |
Brake pedal bracket |
A. |
Locating hook |
|
B. |
Locating pin |
Removal and Installation
Removal and Installation
REMOVAL
Disconnect
the harness connector from the accelerator pedal
assembly.
Remove
bolts and remove accelerator pedal assembly.
CAUTION:
...
