Toyota Camry Owner's Manual (2023): Engine (ignition) switch (vehicles with a smart key system)

Toyota Camry Owner's Manual (2023) / Driving / Driving procedures / Engine (ignition) switch (vehicles with a smart key system)

Performing the following operations when carrying the electronic key on your person starts the engine or changes engine switch modes.

Starting the engine

1. Check that the parking brake is set.

2. Check that the shift lever is in P.

3. Firmly depress the brake pedal.

and a message will be displayed on the multi-information display.

If it is not displayed, the engine cannot be started.

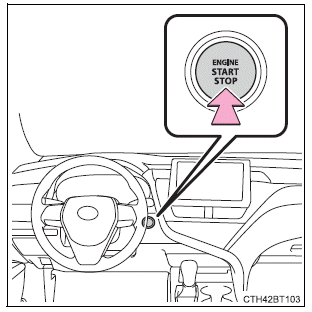

4. Press the engine switch shortly and firmly.

Driving procedures

When operating the engine switch, one short, firm press is enough. It is not necessary to press and hold the switch.

The engine will crank until it starts or for up to 30 seconds, whichever is less.

Continue depressing the brake pedal until the engine is completely started.

The engine can be started from any engine switch mode.

Stopping the engine

1. Stop the vehicle.

2. Set the parking brake and shift the shift lever to P.

3. Press the engine switch.

Driving-related data will be displayed on the multi-information display.

■Automatic engine shut off feature

Engine (ignition) switch (vehicles without a smart key system)
Starting the engine 1. Check that the parking brake is set. 2. Check that the shift lever is in P. 3. Firmly depress the brake pedal. 4. Turn the engine switch to the "START" position and start th ...

Changing engine switch modes
Modes can be changed by pressing the engine switch with the brake pedal released. (The mode changes each time the switch is pressed.) Off* The emergency flashers can be used. The multi-info ...
